9.16
Section 9
Disassembly

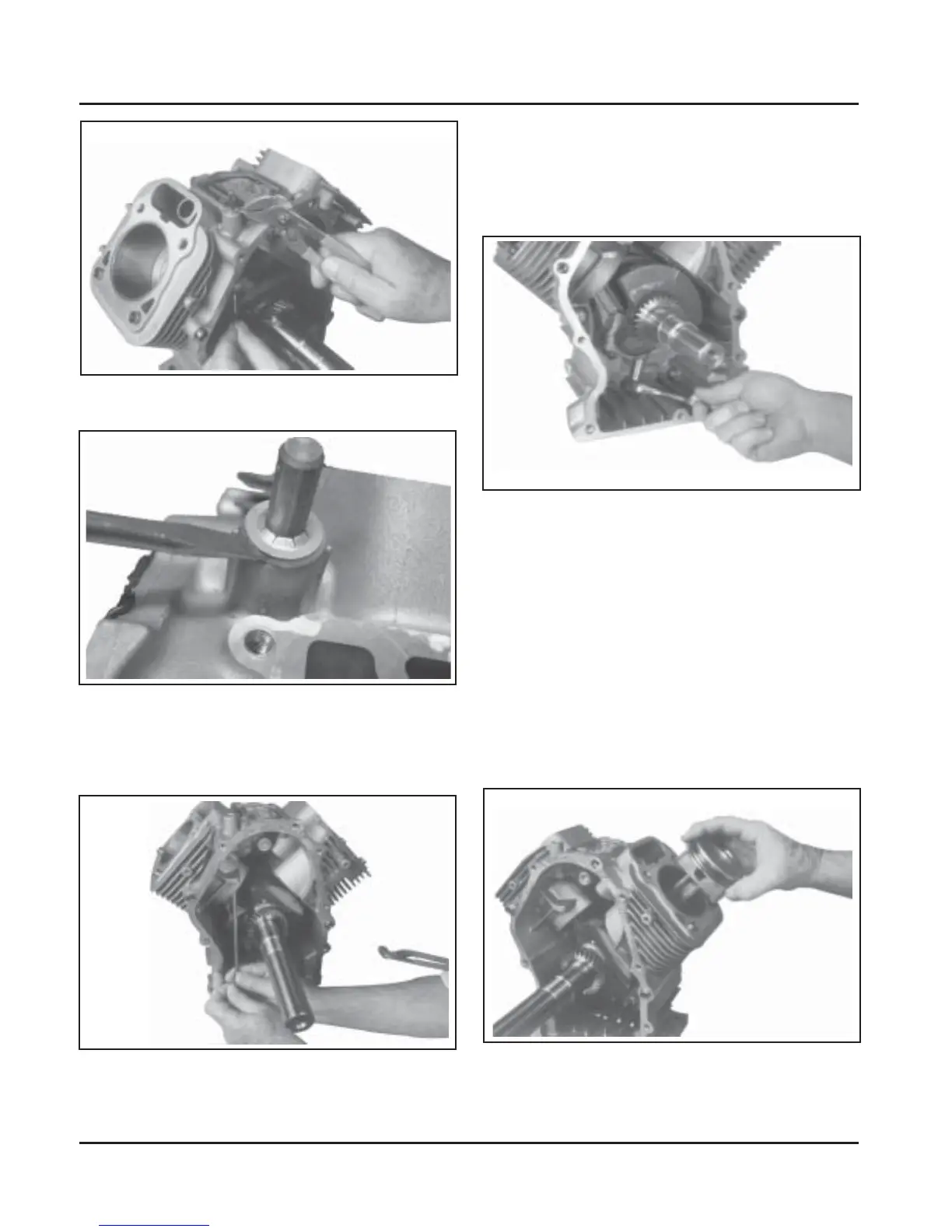

Figure 9-60. Removing Connecting Rod End Cap.
NOTE: If a carbon ridge is present at the top of
either cylinder bore, use a ridge reamer
tool to remove it before attempting to
remove the piston.
2. Carefully remove the connecting rod and piston
assembly from the cylinder bore. See Figure 9-61.
NOTE: The cylinders are numbered on the
crankcase. Use the numbers to mark
each end cap, connecting rod and piston
for reassembly. Do not mix end caps and
connecting rods.
Remove Connecting Rods with Pistons
and Rings
1. Remove the two hex flange screws securing the
closest connecting rod end cap. Remove the end
cap. See Figure 9-60.
Figure 9-61. Removing Connecting Rod and Piston
Assembly.
Figure 9-58. Removing Governor Cross Shaft
Retainer (8 mm Shaft Design).
2. Remove the cross shaft through the inside of the
crankcase. See Figure 9-59.
Figure 9-57. Removing Governor Cross Shaft Hitch
Pin (6 mm Shaft Design).
Figure 9-59. Removing Governor Cross Shaft.
