11.20
Section 11
Reassembly

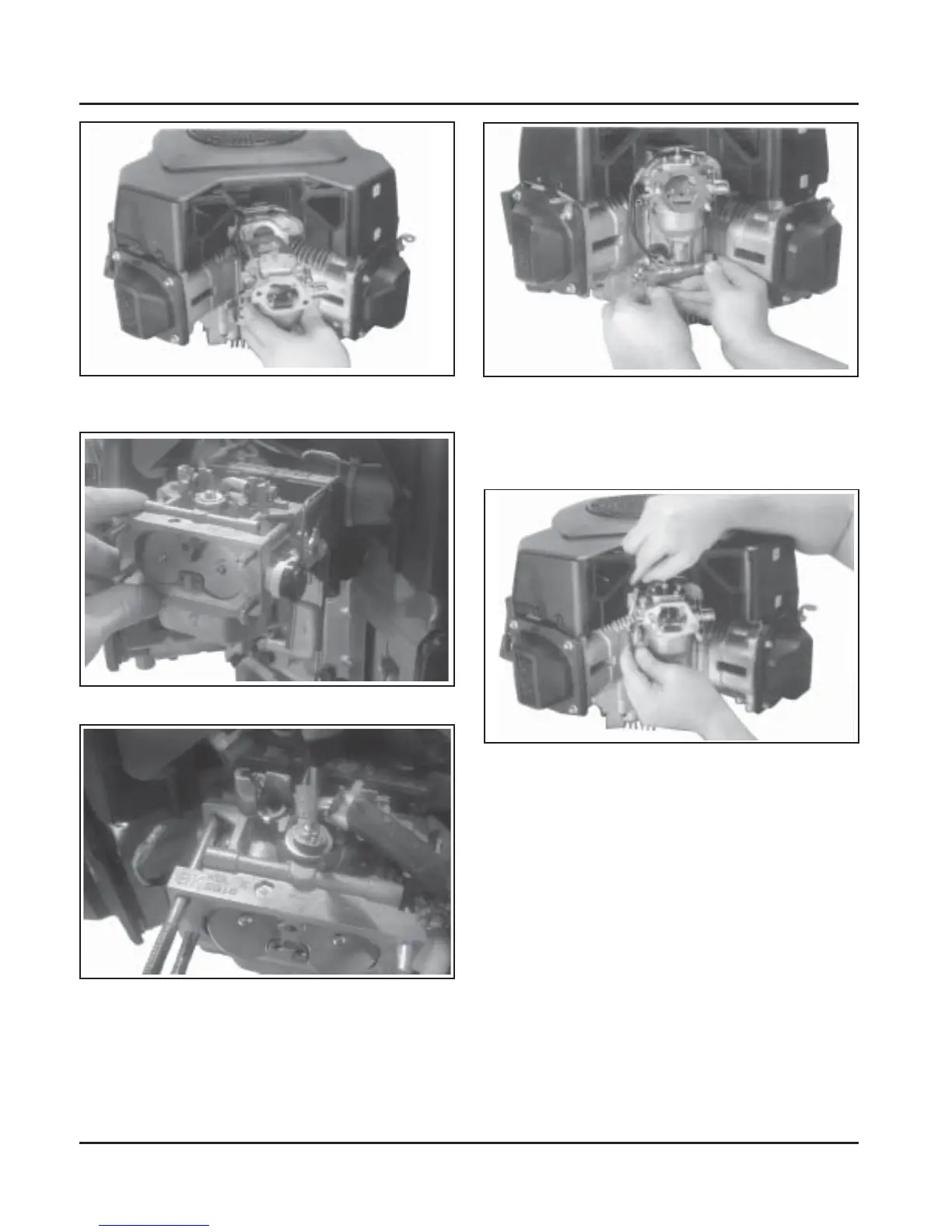

Figure 11-70. Install Governor Lever to Shaft.
2. Make sure the throttle linkage is connected to the
governor lever and the throttle lever on the
carburetor. See Figure 11-71.
Figure 11-67. Installing Carburetor, Throttle
Linkage, and Governor Lever.
Figure 11-68. Installing Two-Barrel Carburetor.
Figure 11-69. Installing External Governor
Controls.
Install External Governor Controls
1. Install the governor lever onto the governor cross
shaft. See Figure 11-70.
Figure 11-71. Installing External Governor Controls
(One-Barrel Carburetor).
Two-Barrel Carburetor Models: Move the control
panel into position on the blower housing and connect
the choke linkage into the bushing/lever from the
backside. Make certain that the control shaft offset is
back and towards the #2 side cylinder. See Figure
11-72. Connect the throttle linkage and spring to the
governor lever. See Figure 11-73.
