Repair
Fuel system

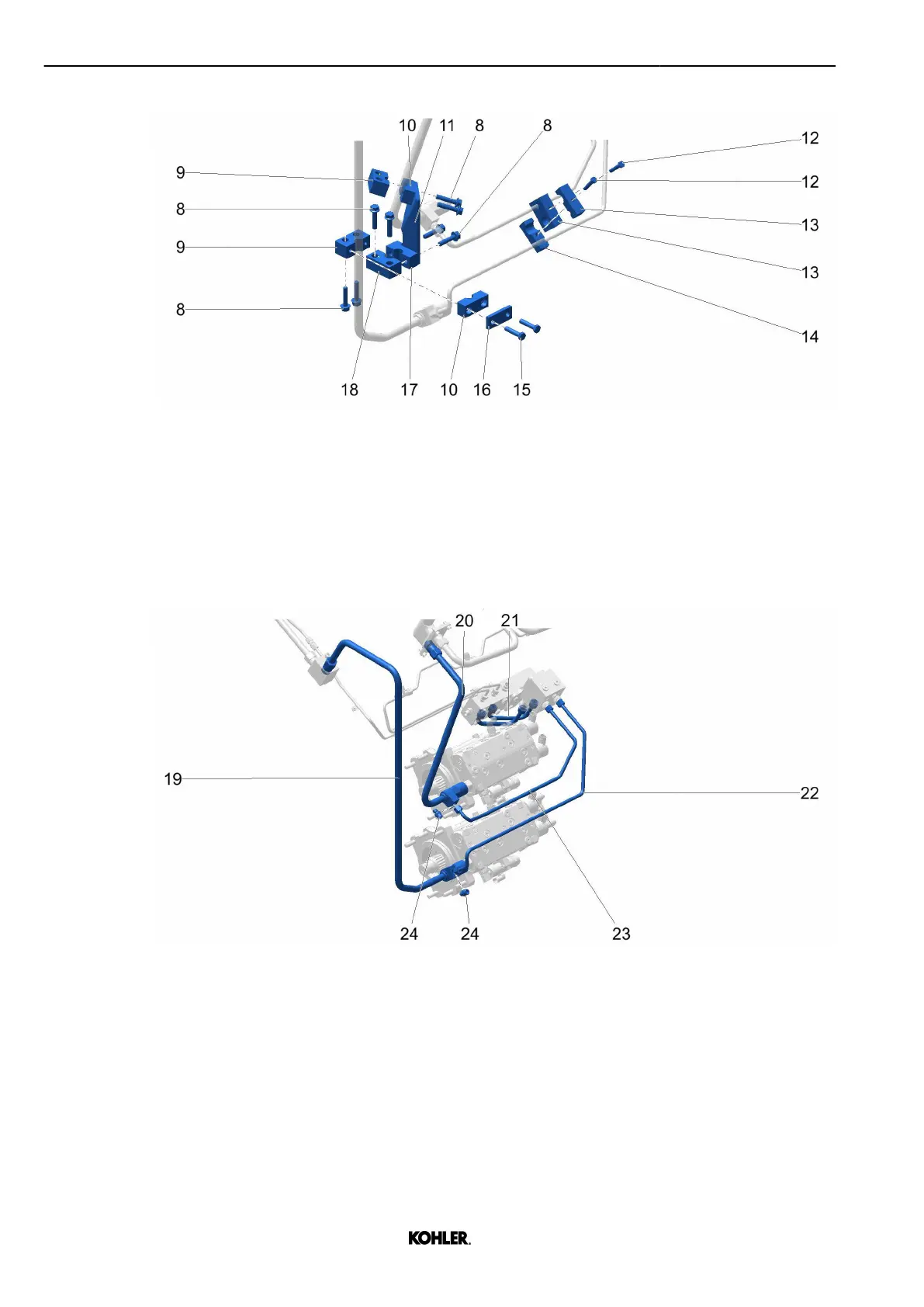

Fig. 117: Removing clamps
u Remove screws 8, 15.
u Remove clamps 9, 10, 17, 18 and plate 16.
u Remove holder 11.
u Remove screws 12.
u Remove clamps 13, 14.
Fig. 118: Removing high pressure piping
u Remove fuel pipes 19, 20, 21, 22, 23 with flange joints 24.
