Repair
Exhaust gas system
u Tighten screws 7 to torque.

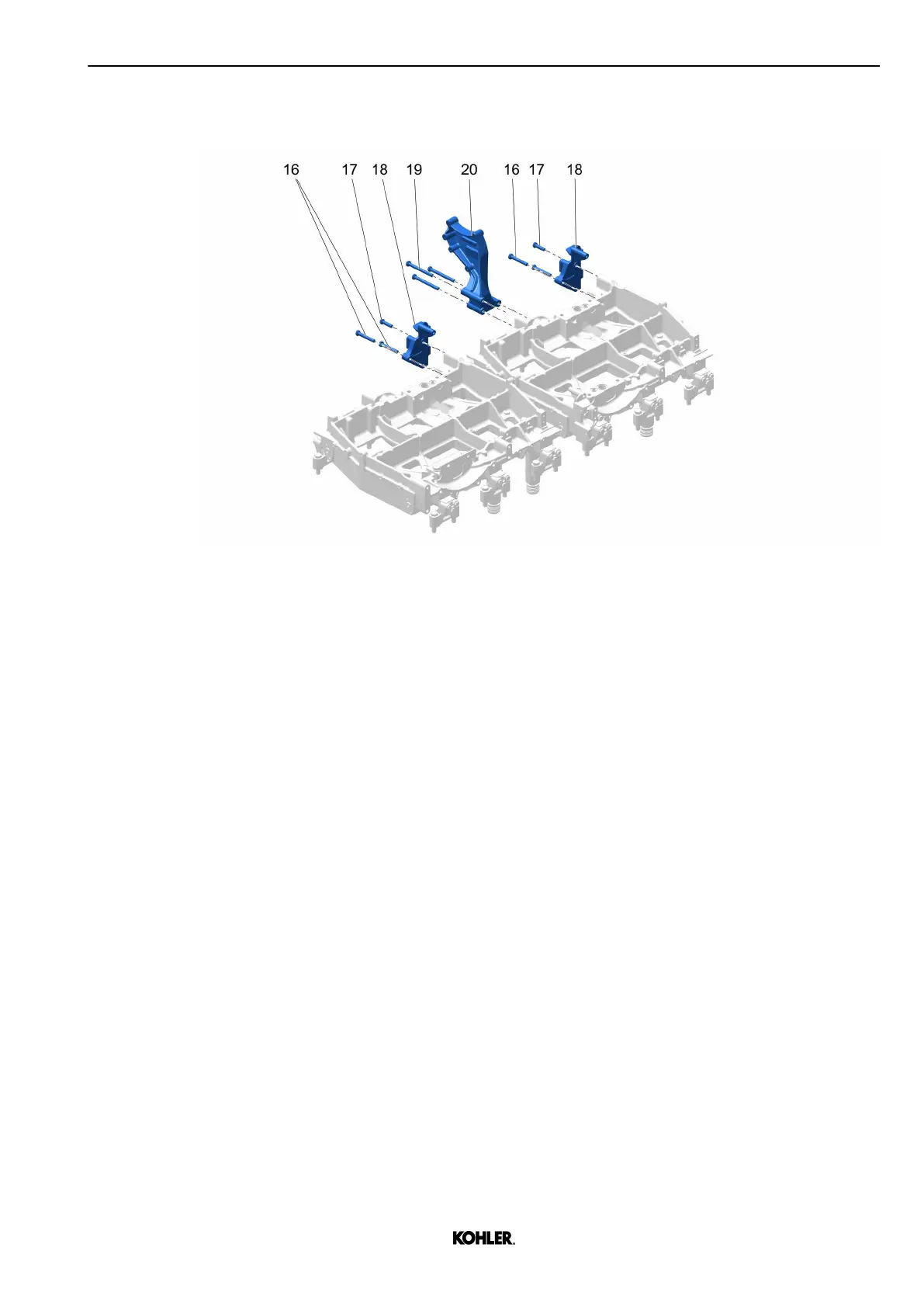

Fig. 196: Installing holders
u Screw holders 18 with screws 16, 17.
u Screw holder 20 with screws 19.
u Tighten screws 16, 17, 19 to torque.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening
torques, page 268.)
3.10.6 Exhaust pipes and compensators (SL 214)
Previous tasks
q Remove turbocharger. (For more information see: 3.10.3 Turbocharger removal and installa‐
tion (SL 213), page 166.)
q Remove turbocharger bracket. (For more information see: 3.10.5 Turbocharger brackets
removal and installation, page 176.)
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
181
