Repair
Exhaust gas system

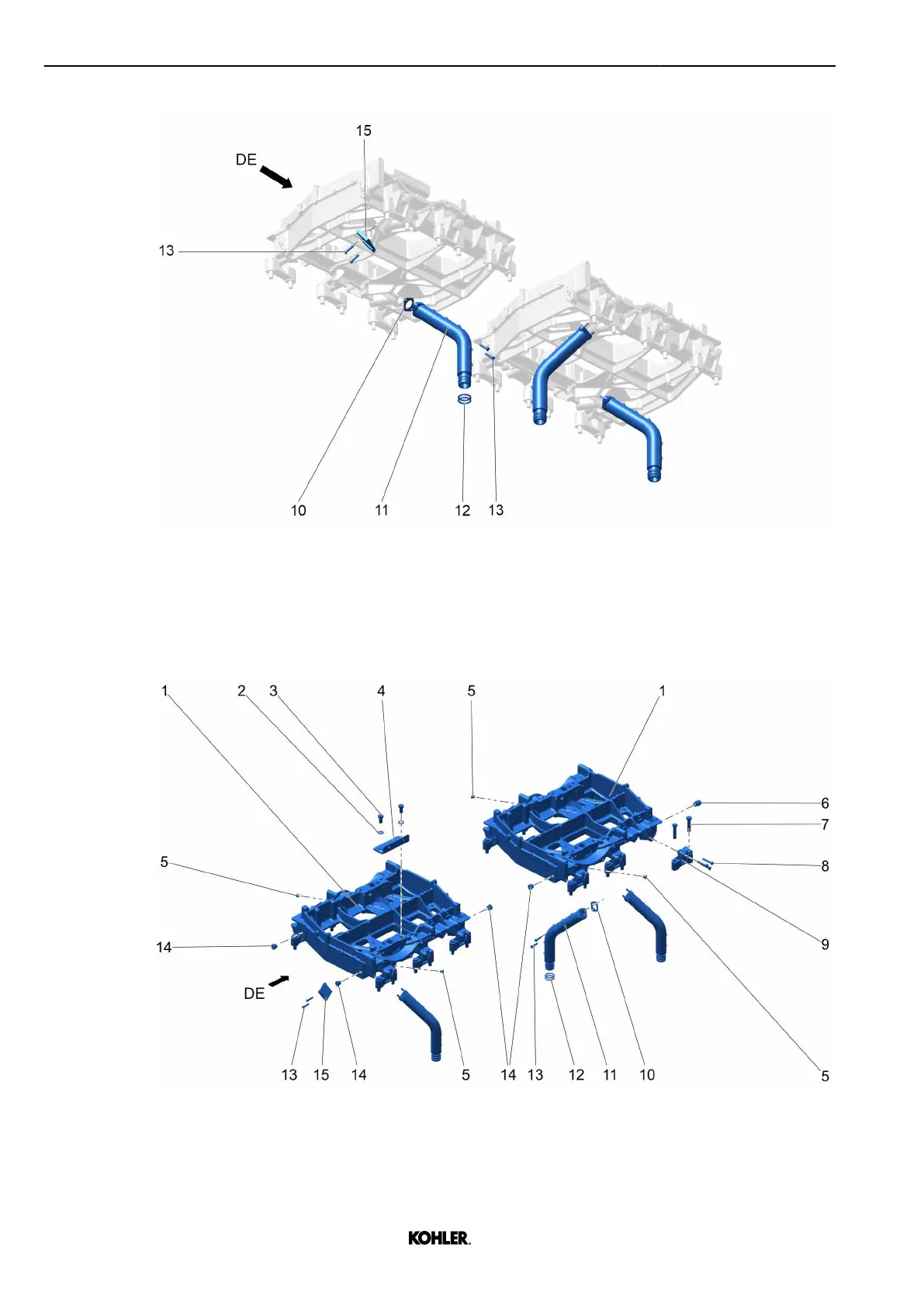

Fig. 194: Installing oil return pipes
u Install oil return pipes 11 with screws 13, seals 10, and o-rings 12.
u Install cover 15 with screws 13.
u Tighten screws 13 to torque.
Fig. 195: Installing turbocharger brackets
u Install screw plugs 5, 14 and flange joint 6.
u Screw turbocharger brackets 1 with screws 7
