Function description
1.2.3 Charge air system

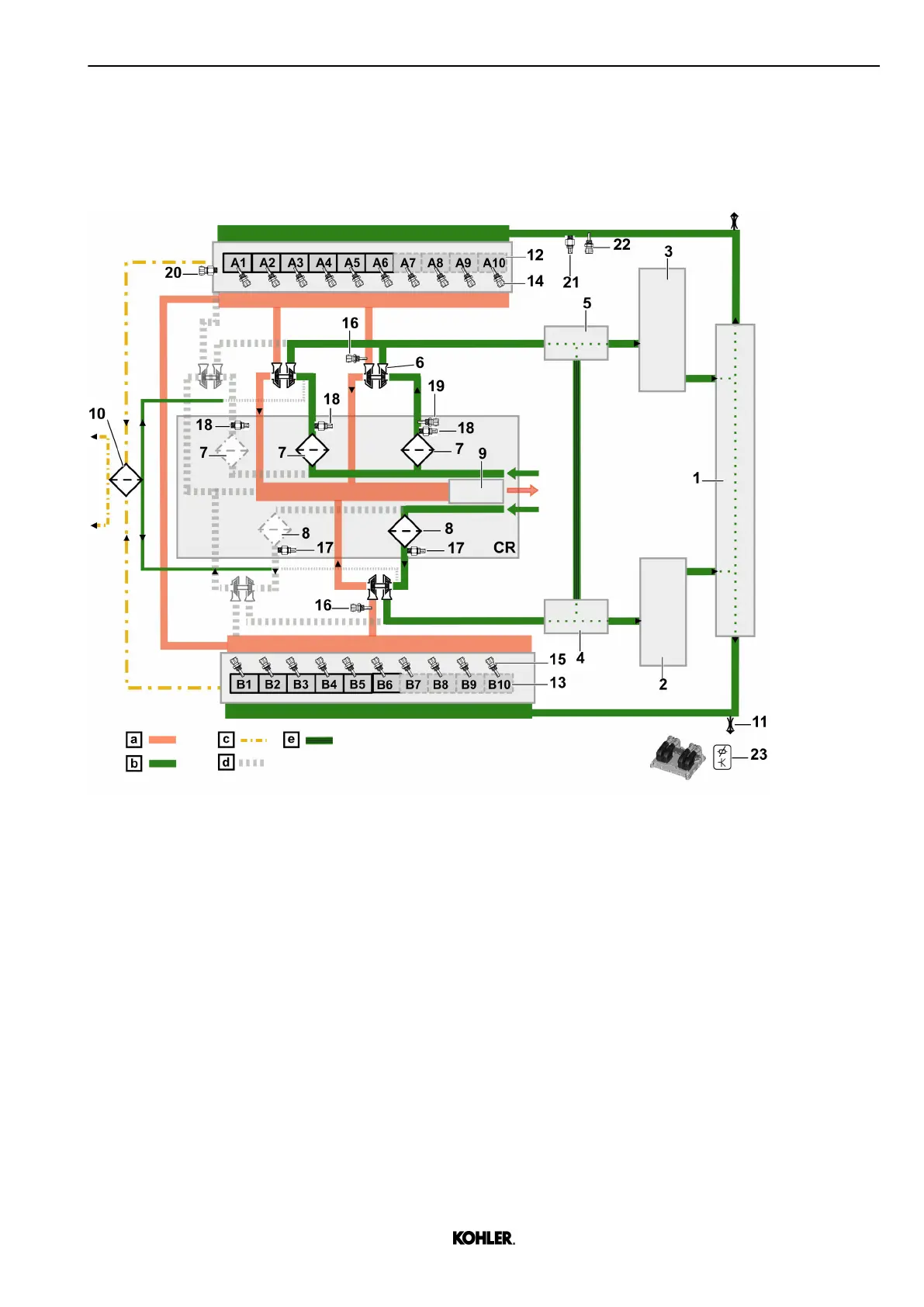

Charge air diagram
Fig. 22: Charge air diagram
a
Exhaust gas c Oil vapor e For odd number of turbo‐
chargers only
b Fresh air d Depending on engine config‐
uration
CR Customer responsibility
1 Aggregate support 6 Turbocharger 11 Venting point
2 Charge air cooler - B side 7 Air filter - A side 12 Engine A bank
3 Charge air cooler - A side 8 Air filter - B side 13 Engine B bank
4 Elbow - B side 9 Exhaust catalyst
5 Elbow - A side 10 Blowby filters
Sensors list
14 B785x - Exhaust gas temper‐
ature on cylinder Ax
(optional)
18 B780 - Air intake pressure
switch - A side (clogging)
22 B707 - Charged air tempera‐
ture A after charge air cooler
15 B786x - Exhaust gas temper‐
ature on cylinder Bx
(optional)
19 B749 - Air intake tempera‐
ture - A side
23 Bxx1 - Atmospheric pressure
(on ECU 2-HD)
See next page for continuation of the image legend
KD62V12 33525088601_8_1 EN_US
2022-09
