Kohler KD62V12

Repair
Exhaust gas system

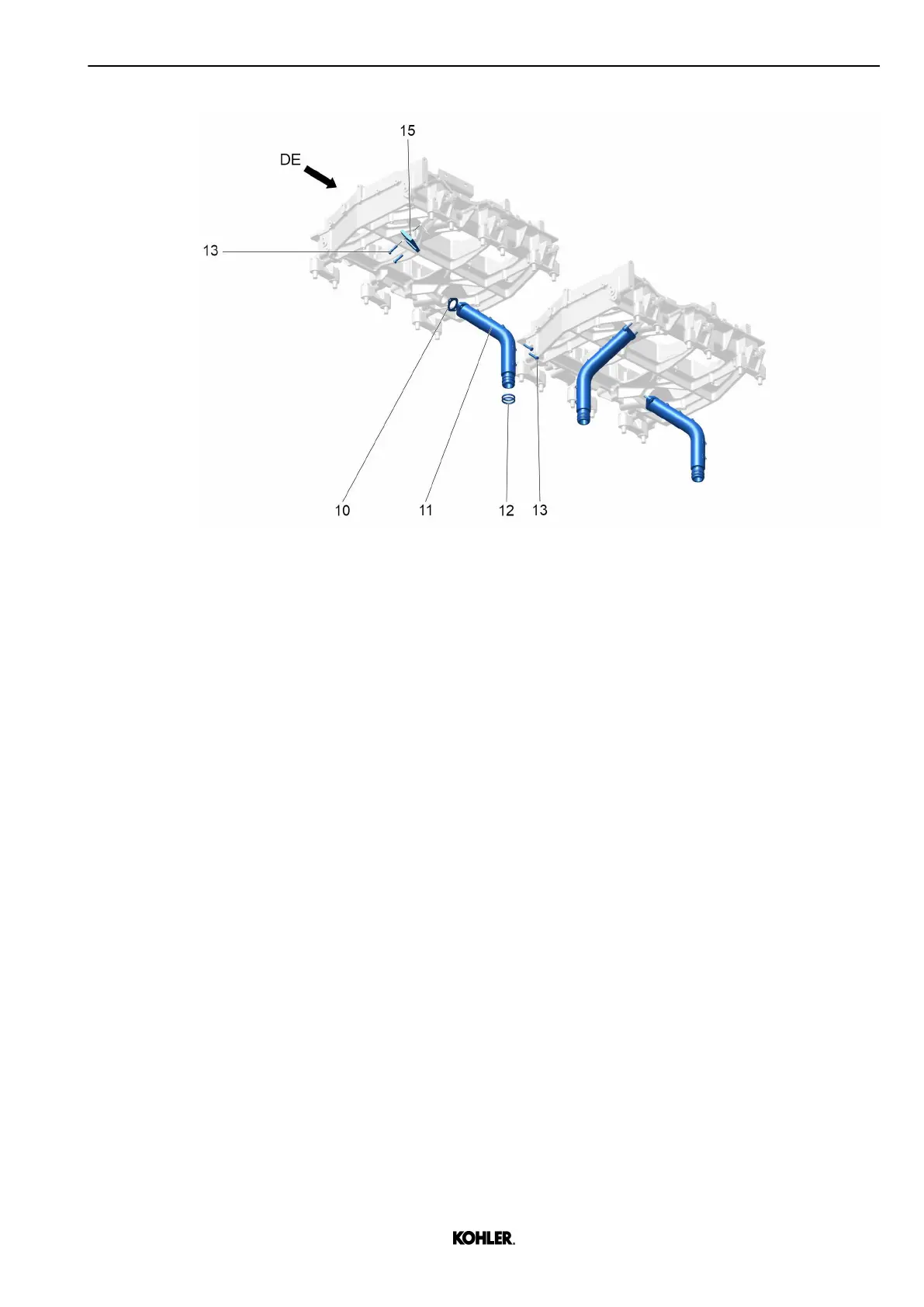

Fig. 193: Removing oil return pipes
u Remove screws 13.
u Remove oil return pipes 11.
u Remove cover 15.
Installation
u Install brackets 9 with screws 8 on turbocharger bracket 1.
