Repair
Fuel system
Removal

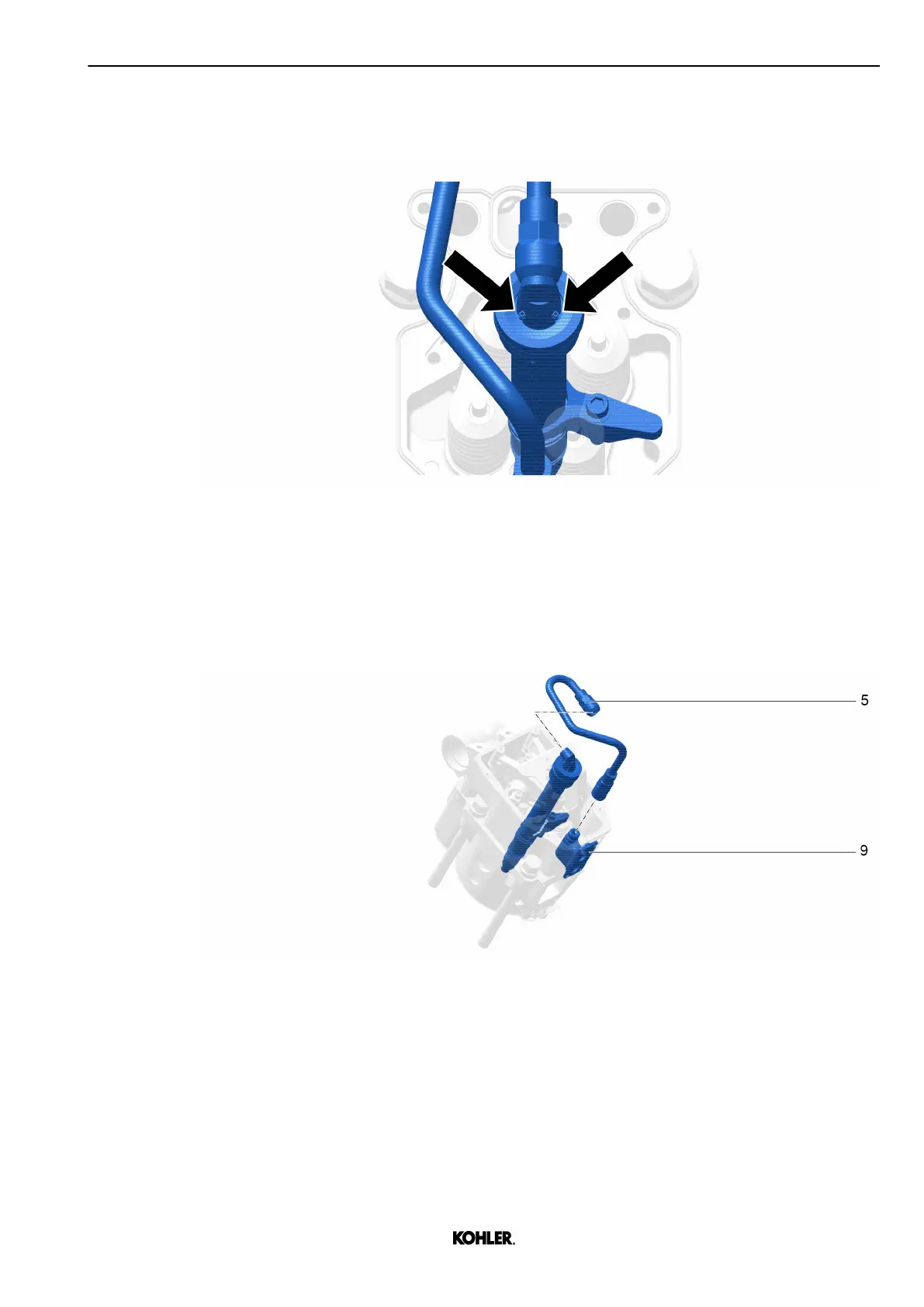

Fig. 126: Removing electrical contacts
u Remove electrical contacts from injector.
u Disconnect injector cable on both ends.
u Disconnect HT sensor on both ends if installed.
u Remove both adaptors from rocker arm housing.
Fig. 127: Removing high-pressure pipe
u Take off high-pressure pipe 5 from adaptor 9.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
123
