Repair
Fuel system

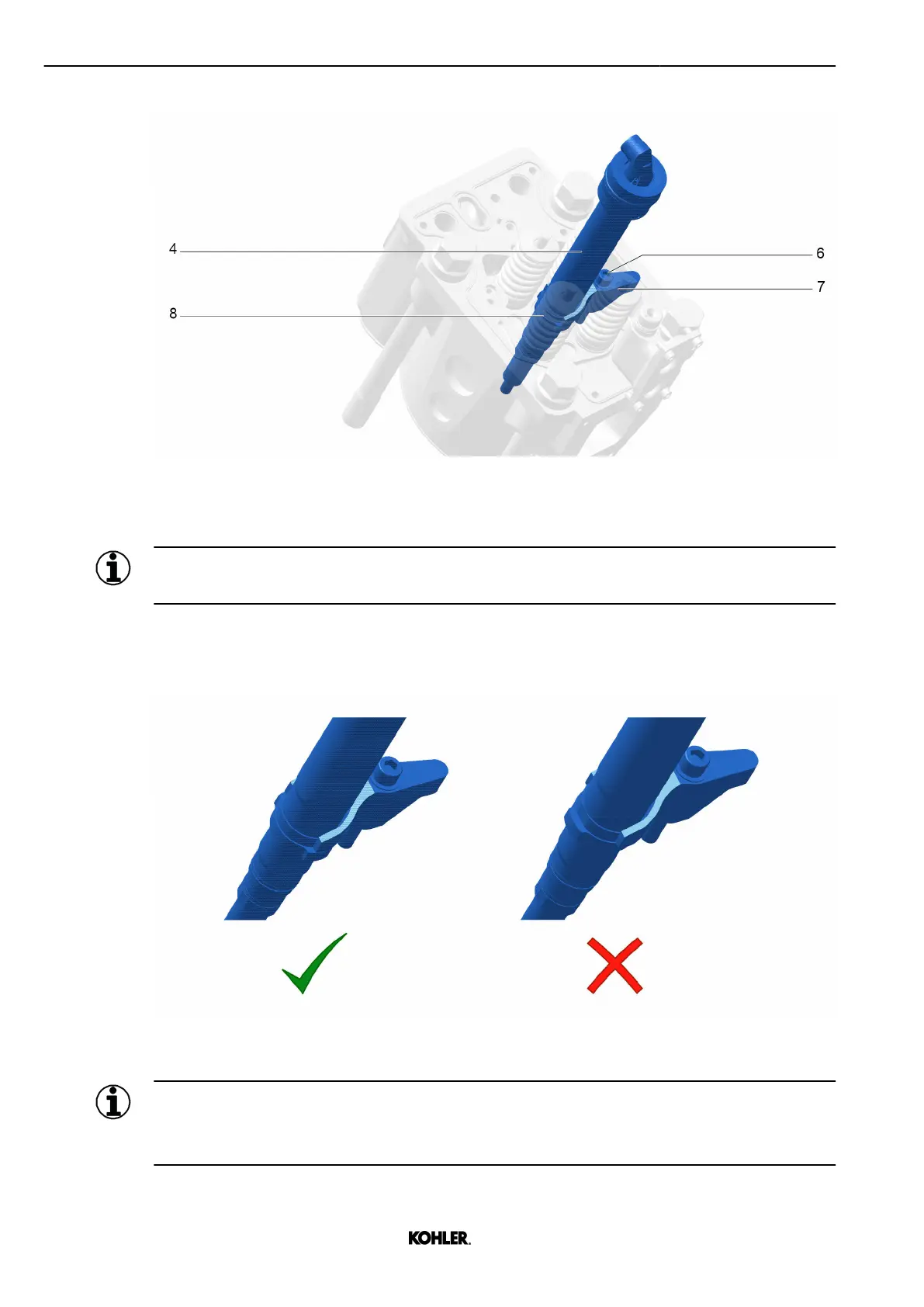

Fig. 132: Installing injector and clamp
u Lubricate thread and head contact surface of screw 6 with clean engine oil.
Information
Make sure the copper washer is present before installing the injector.
u Position injector 4 with its connection upwards into sleeve 1.
u Install clamp 7 with screw 6.
Fig. 133: Positioning injector and clamp
Information
Injectors can be mounted in two positions. Note that only one position is correct.
Make sure the clamp is centered between valve springs.
