Repair
Fuel system
Overview

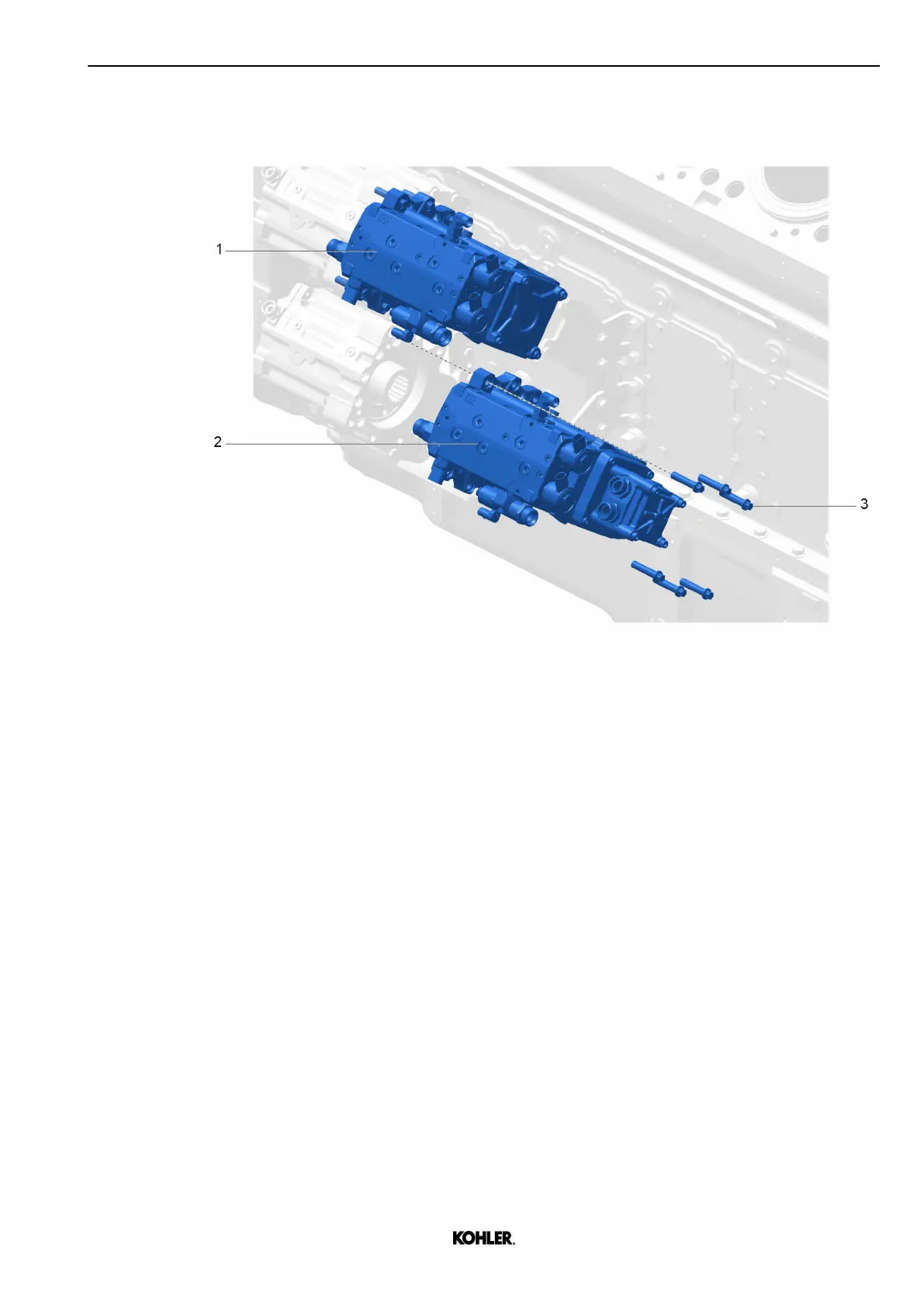

Fig. 144: Task overview
1
HP Fuel pump without LP pump 3 Screw (M12)
2 HP Fuel pump with LP pump
Removal
u Remove a first screw 3 and a second one diametrically opposed.
u Place guiding rods in place of the two screws.
u Remove remaining screws 3.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
135
