Repair
Charge air system
Consumables and equipment
– Rags
– Cleaner
– Grease (Optimol)
Overview

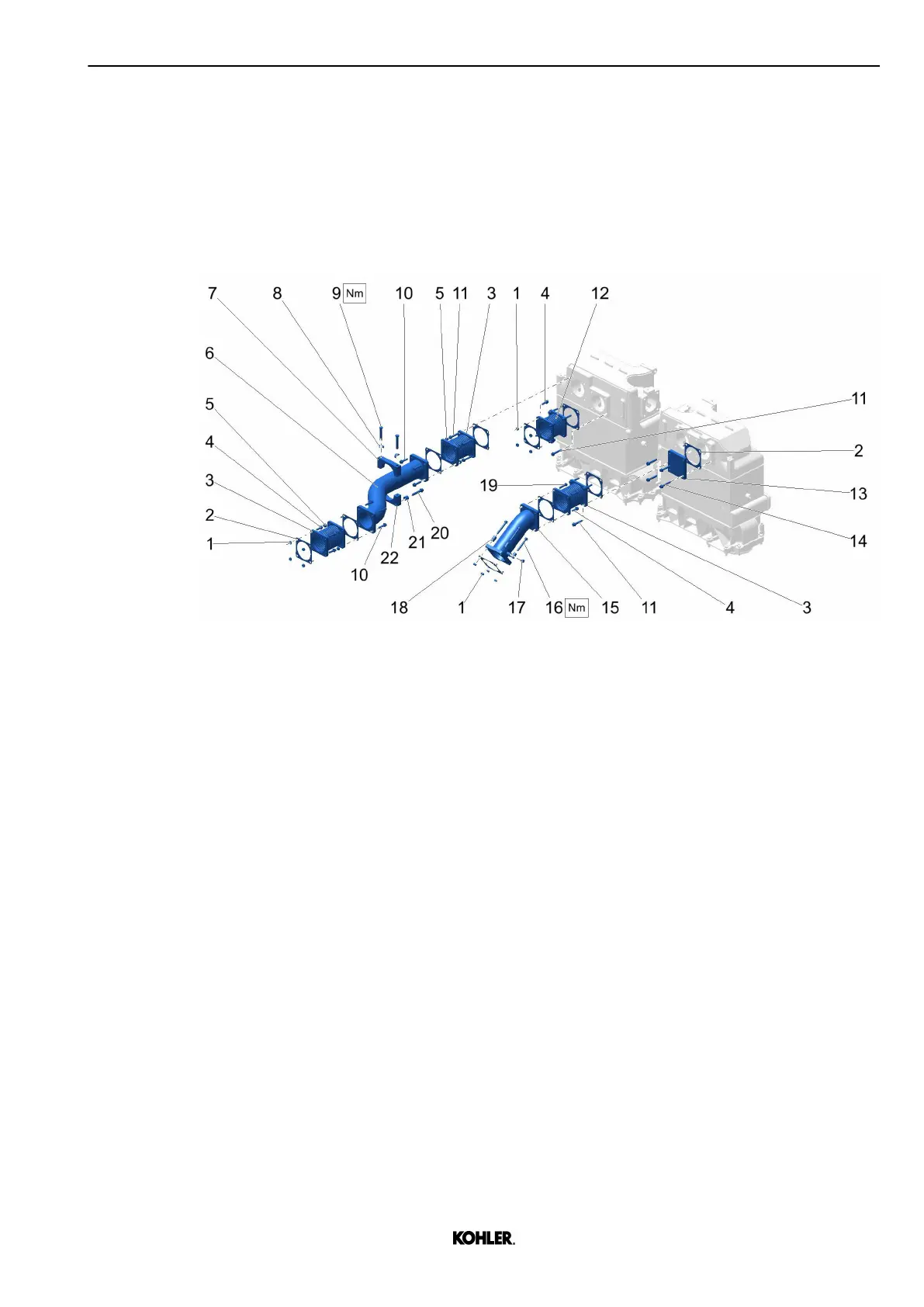

Fig. 151: Task overview
1
Nut (M10) 12 Compensator
2 Seal 13 End cover
3 Compensator 14 Screw (M10)
4 Screw (M10) 15 Pipe
5 Nut (M10) 16 Screw (M10)
6 Pipe 17 Screw plug
7 Clamp 16 Screw (M10)
8 Locking plate 19 Screw (M10)
9 Screw (M12) 20 Screw (M10)
10 Screw (M10) 21 Distance sleeve
See next page for continuation of the image legend
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
141
