Repair
Charge air system
Overview

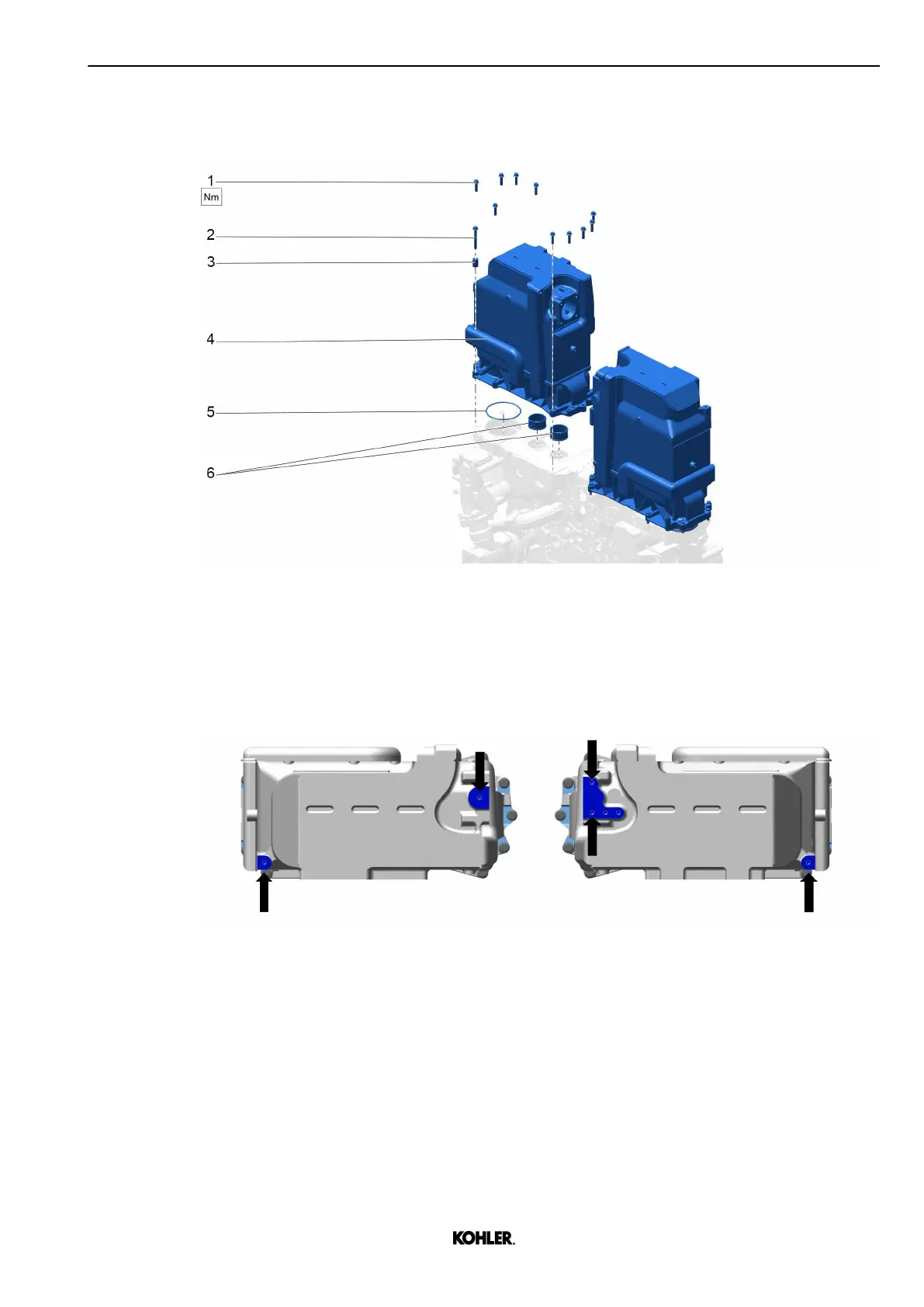

Fig. 164: Task overview
1
Screw (M12) 4 Charge air cooler
2 Screw (M12) 5 O-ring
3 Distance sleeve 6 Pipe
Removal
Fig. 165: Lifting bolt locations
u Install lifting bolts on the charge air coolers 4.
u Secure the charge air coolers 4 with an adapted lifting device.
u Remove screws 1, 2.
u Remove charge air coolers 4.
Installation
u Insert o-ring 5 in charge air coolers 4.
u Insert pipes 6 in aggregate support.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
151
