Repair
Exhaust gas system
Installation

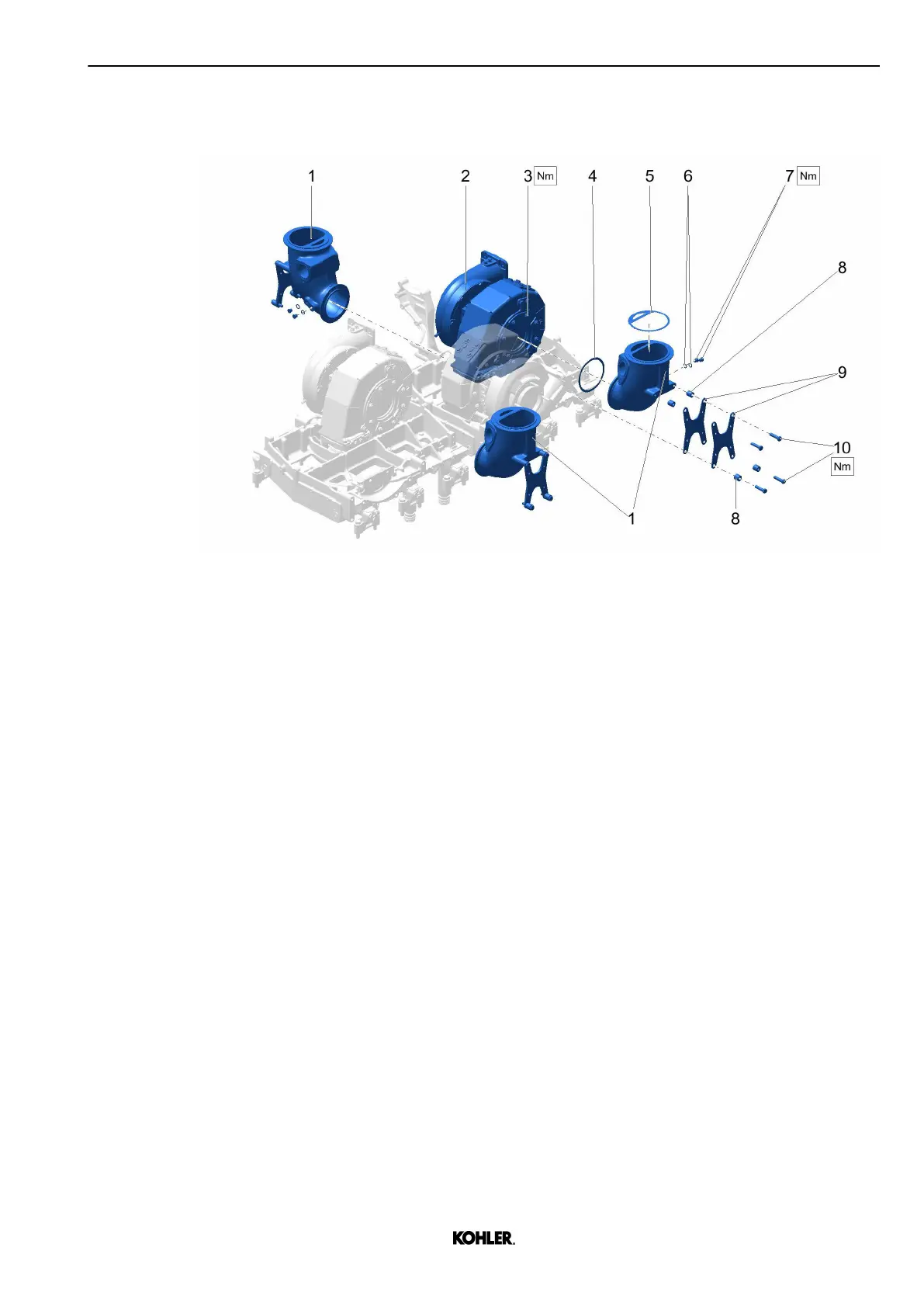

Fig. 175: Installing elbows
u Install orifice plate 5 on exhaust elbow 1.
u Install screw plugs 7 with washers 6 into exhaust elbow 1.
u Tighten screw plugs 7 to torque.
u Install exhaust elbow 1, and seal 15 on turbocharger outlet.
u Install retaining plates 9 with screws 10, and distance sleeves 8.
u Tighten screws 10 to torque.
u Repeat procedure for each exhaust elbow.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
163
