Repair
Cooling system

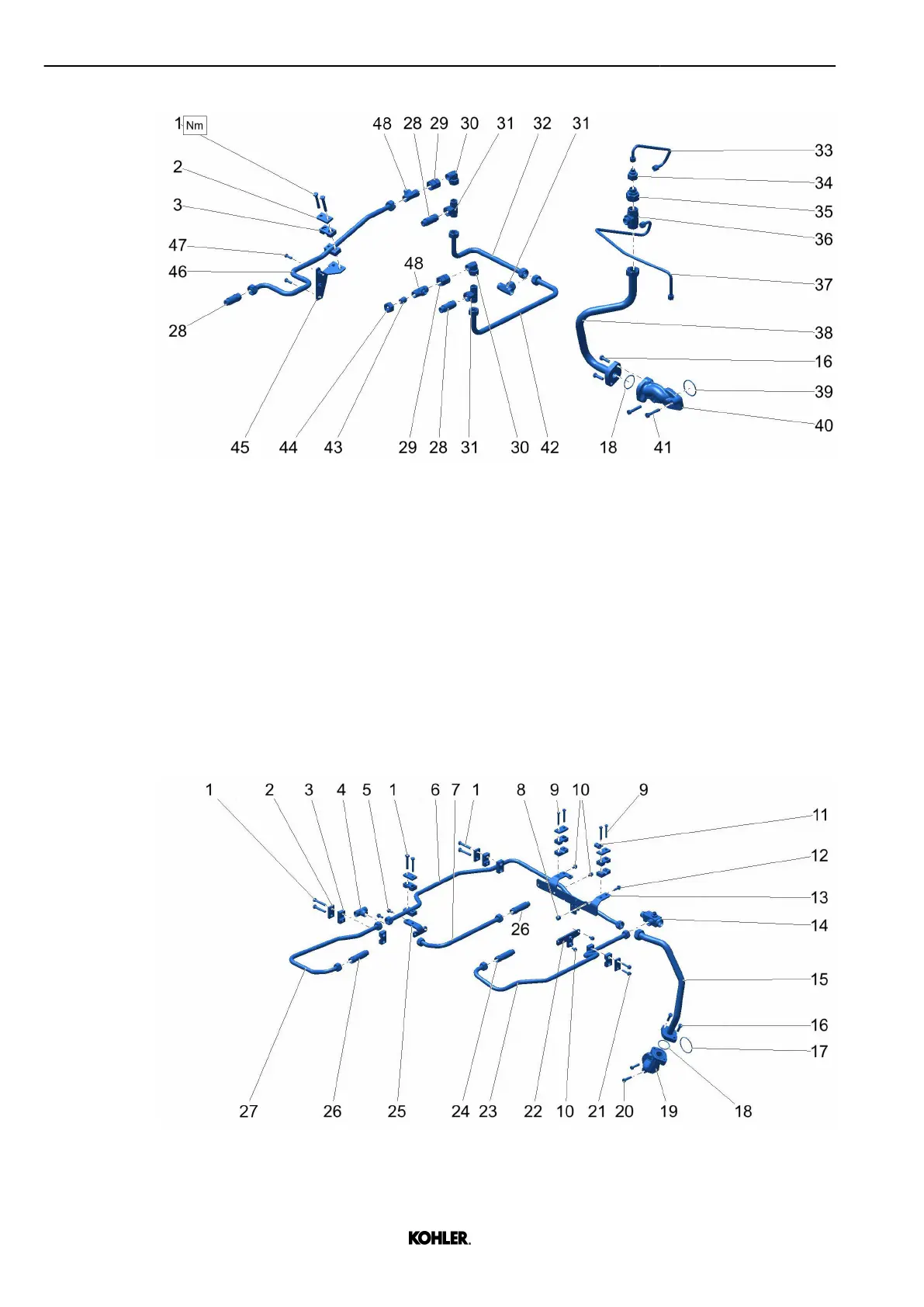

Fig. 229: Task overview
28
Fitting 39 O-ring
29 Fitting 40 Aggregate support connector
30 90° connector 41 Screw (M10)
31 T connector 42 Pipe
32 Pipe 43 Plug
33 Pipe 44 Nut
34 Coupling 45 Retaining plate
35 Flange joint 46 Pipe
36 T connector 47 Screw (M10)
37 Pipe 48 T connector
38 Pipe
Removal
Fig. 230: Removing pipes
u Remove screws 1, 9, 21.
