Repair
Cooling system
Special tools
Special tool Designation
Guiding rod M12x230 – Thermostat (x2)
Tab. 44: Special tools
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

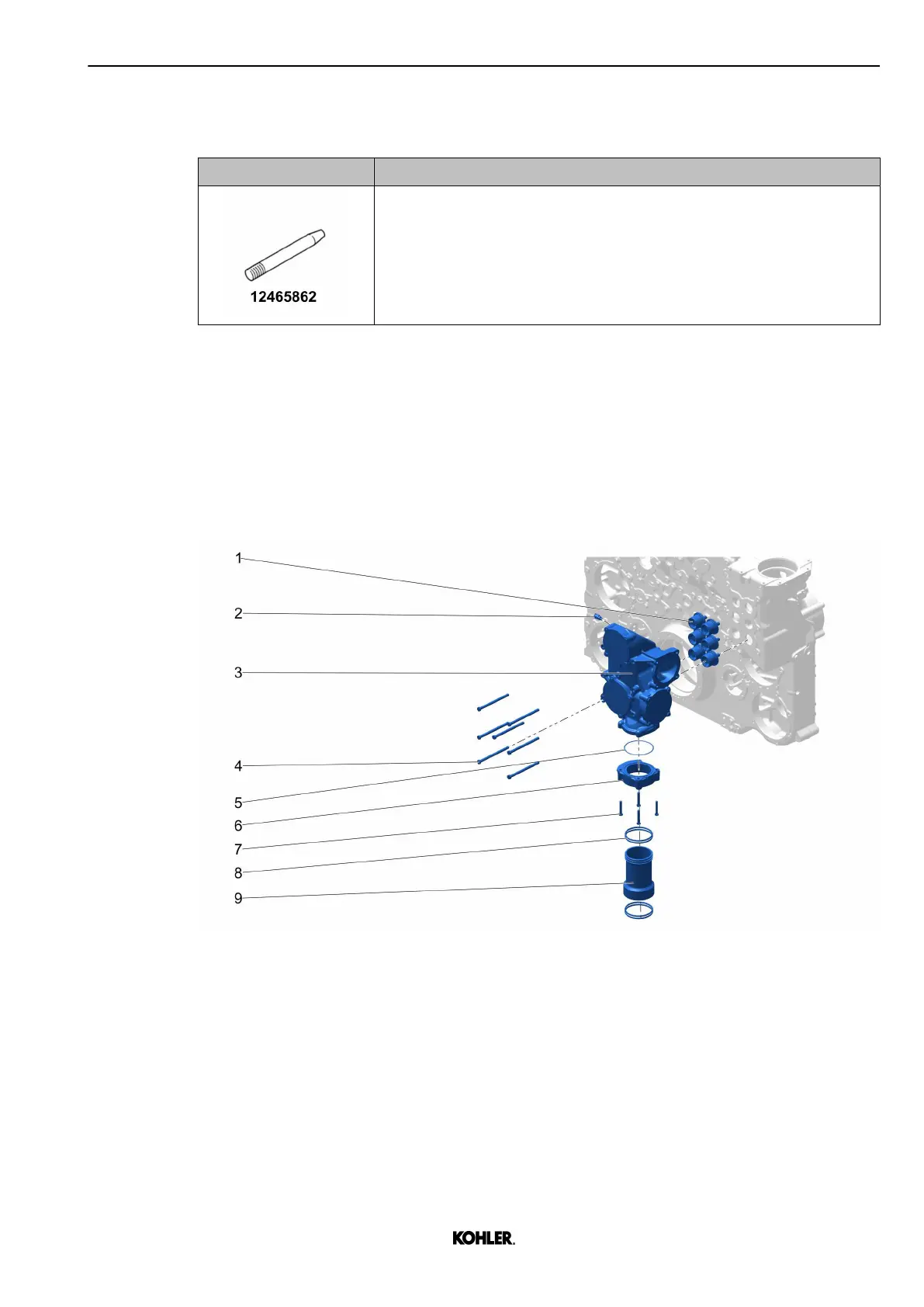

Fig. 236: Task overview
1
Thermostat 6 Flange
2 Test point fitting 7 Screw (M10)
3 Thermostat housing 8 O-ring
4 Screw (M12) 9 Pipe
5 O-ring
Removal
u Remove two screws 4 diametrically opposed.
u Place guiding rods in place of the two screws 4.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
219
