Kohler KD62V12 User Manual

Repair
Cooling system
Overview

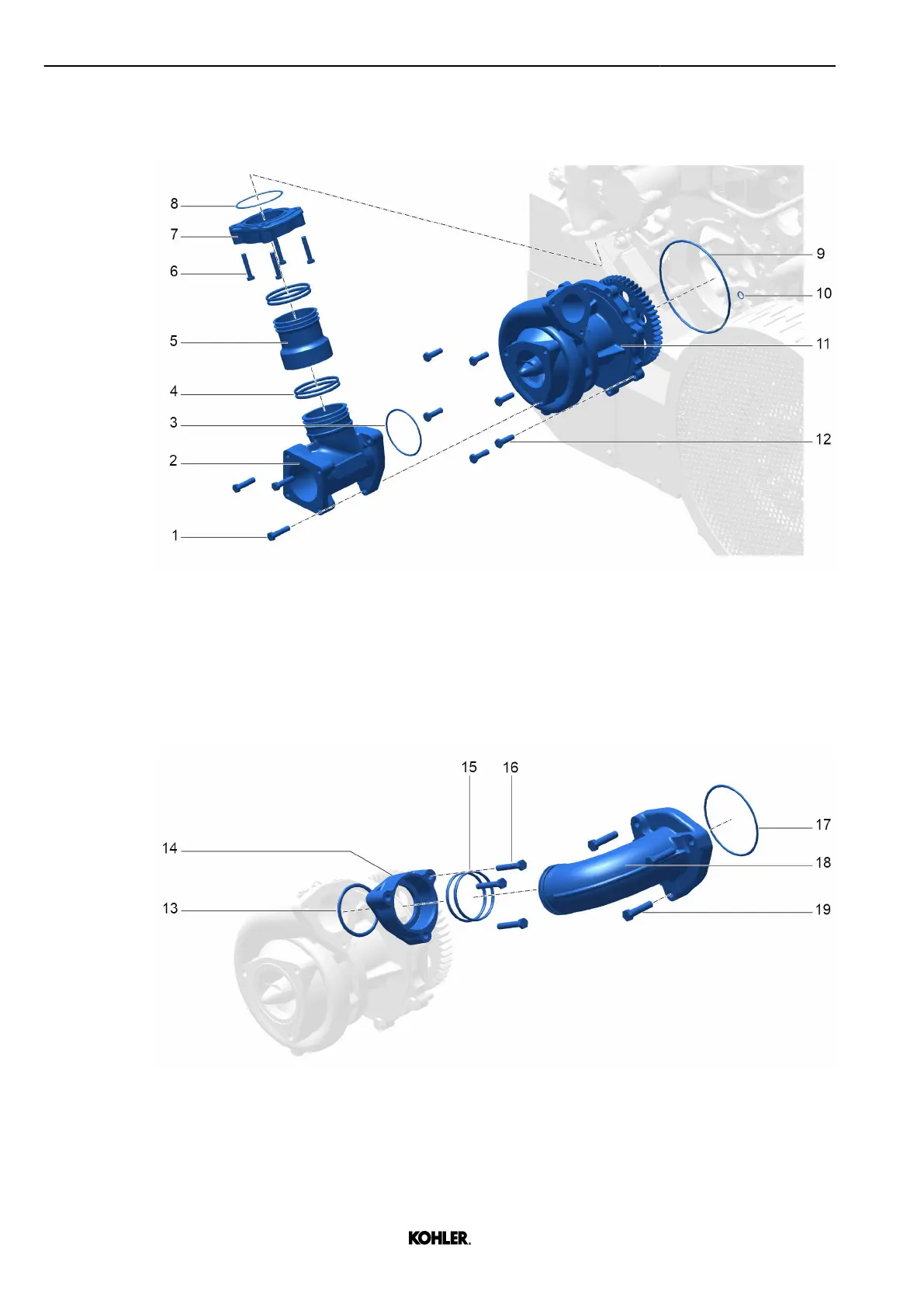

Fig. 240: Task overview
1
Screw (M12) 7 Flange
2 Branch pipe 8 O-ring
3 O-ring 9 O-ring
4 O-ring 10 O-ring
5 Pipe 11 Coolant pump LT
6 Screw (M10) 12 Screw
Fig. 241: Task overview
13
O-ring 17 O-ring
14 Flange 18 Elbow pipe
15 O-ring 19 Screw (M12)
16 Screw (M10)
226
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
