Kohler KD62V12

Repair
Cooling system
Removal

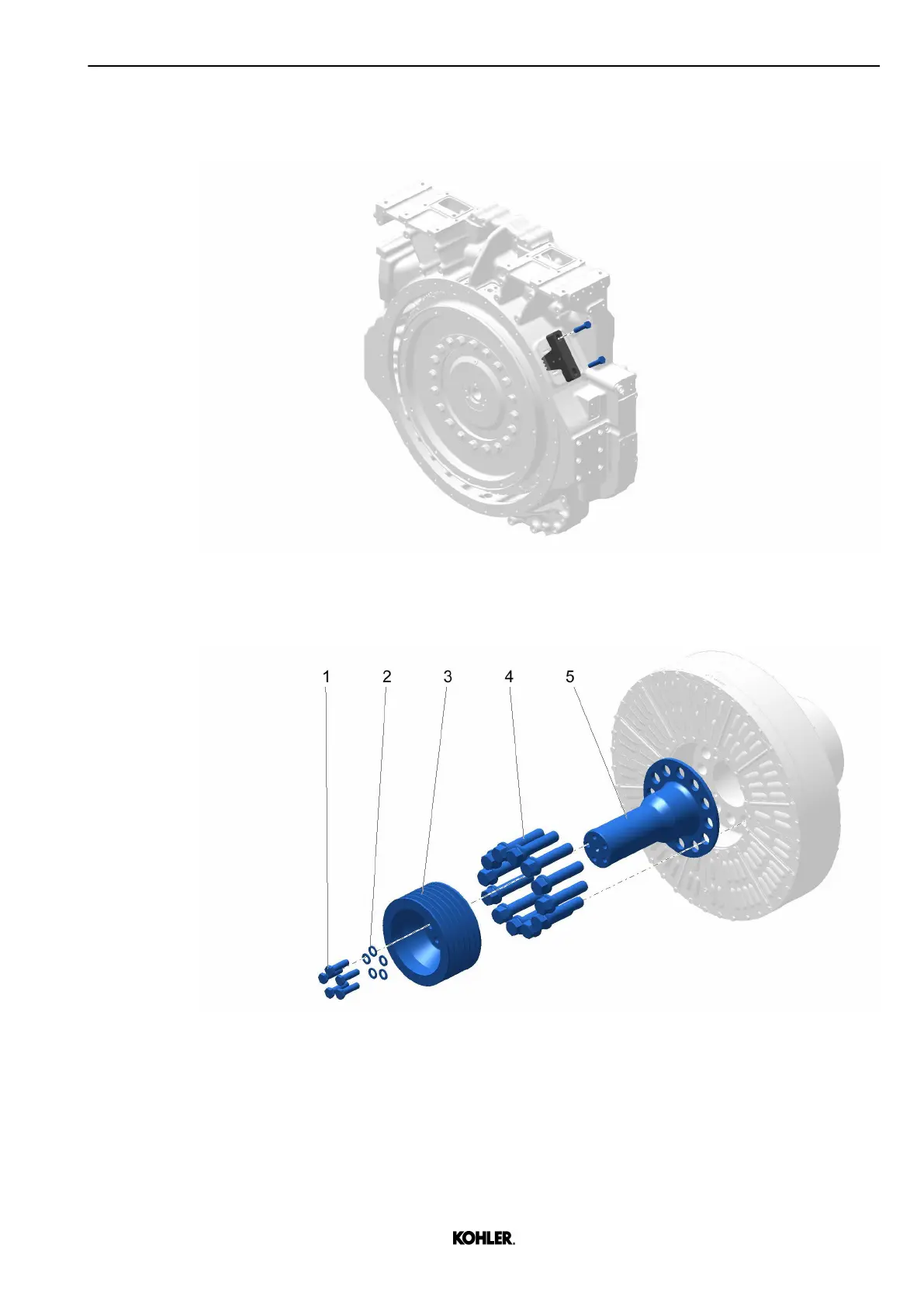

Fig. 244: Locking device
u Install locking device with screws (M16) to lock crankshaft.
Fig. 245: Removal of fan drive pulley
u Remove screws 1, and washers 2.
u Remove pulley 3.
u Remove screws 4.
u Remove axle 5.
u Remove locking device.
