Kohler KD62V12

Repair
Electrical system

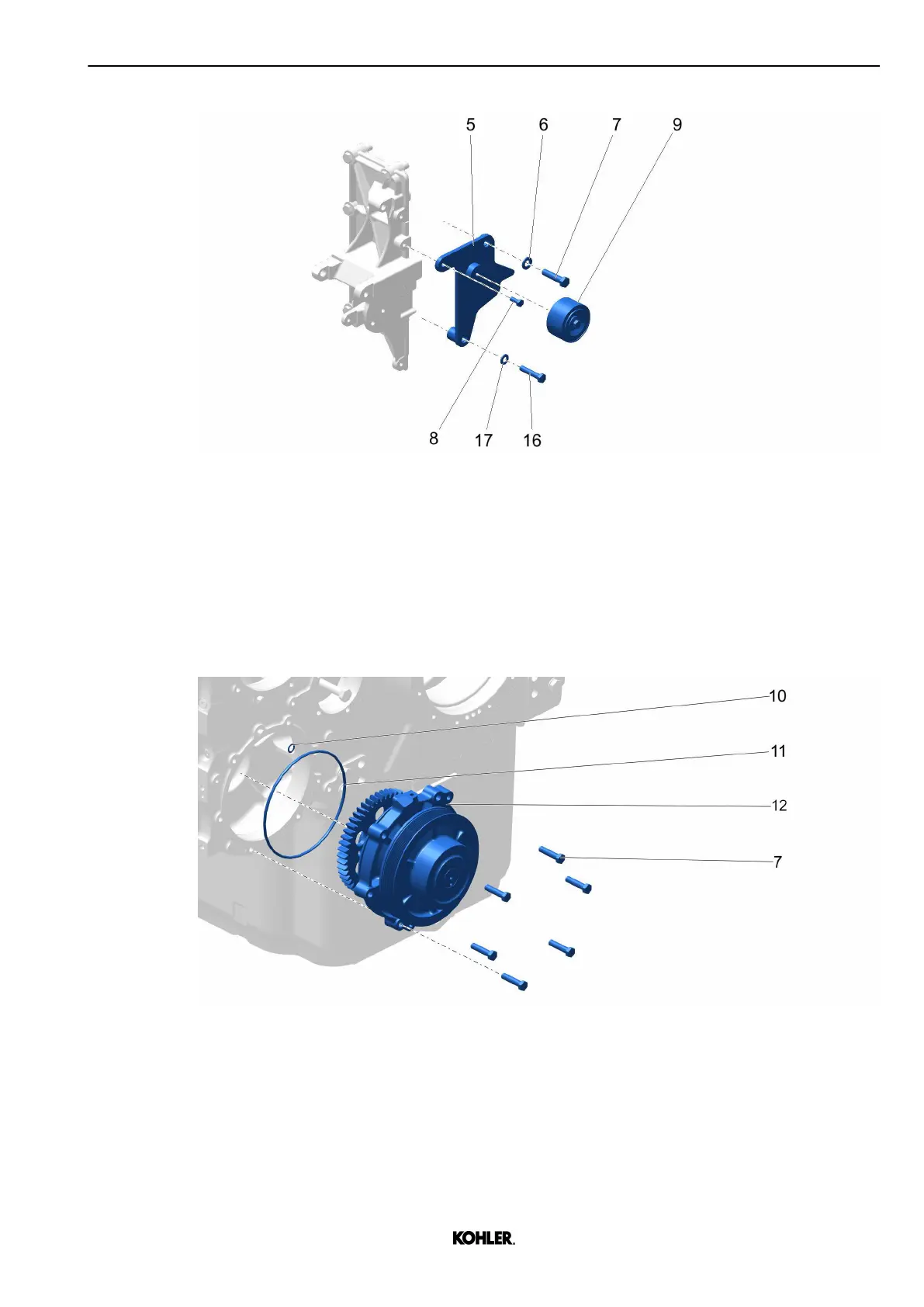

Fig. 256: Removing roller
u Loosen roller 9 fastening.
u Remove roller 9.
u Remove screws 7, 8, 16 and washers 6, 17.
u Remove plate 5.
Installation
Fig. 257: Installing auxiliary PTO
u Grease o-rings 10, 11.
u Insert o-rings 10, 11 in auxiliary PTO 12.
u Install auxiliary PTO 12 with screws 7.
