Repair
Electrical system
u Remove screws 2.
u Remove starter 1.
Installation
u Install starter 1 with screws 2.
u Tighten screws 2 to 180
±45
Nm (133
±33
ft-lb).
u Apply general-purpose lubricating grease to flywheel ring gear.
Information
The application of general-purpose lubricating grease to flywheel ring gear eases gear engage‐
ment.
u Connect starter electrical connections.
Specific values
Not applicable.
Tightening specifications

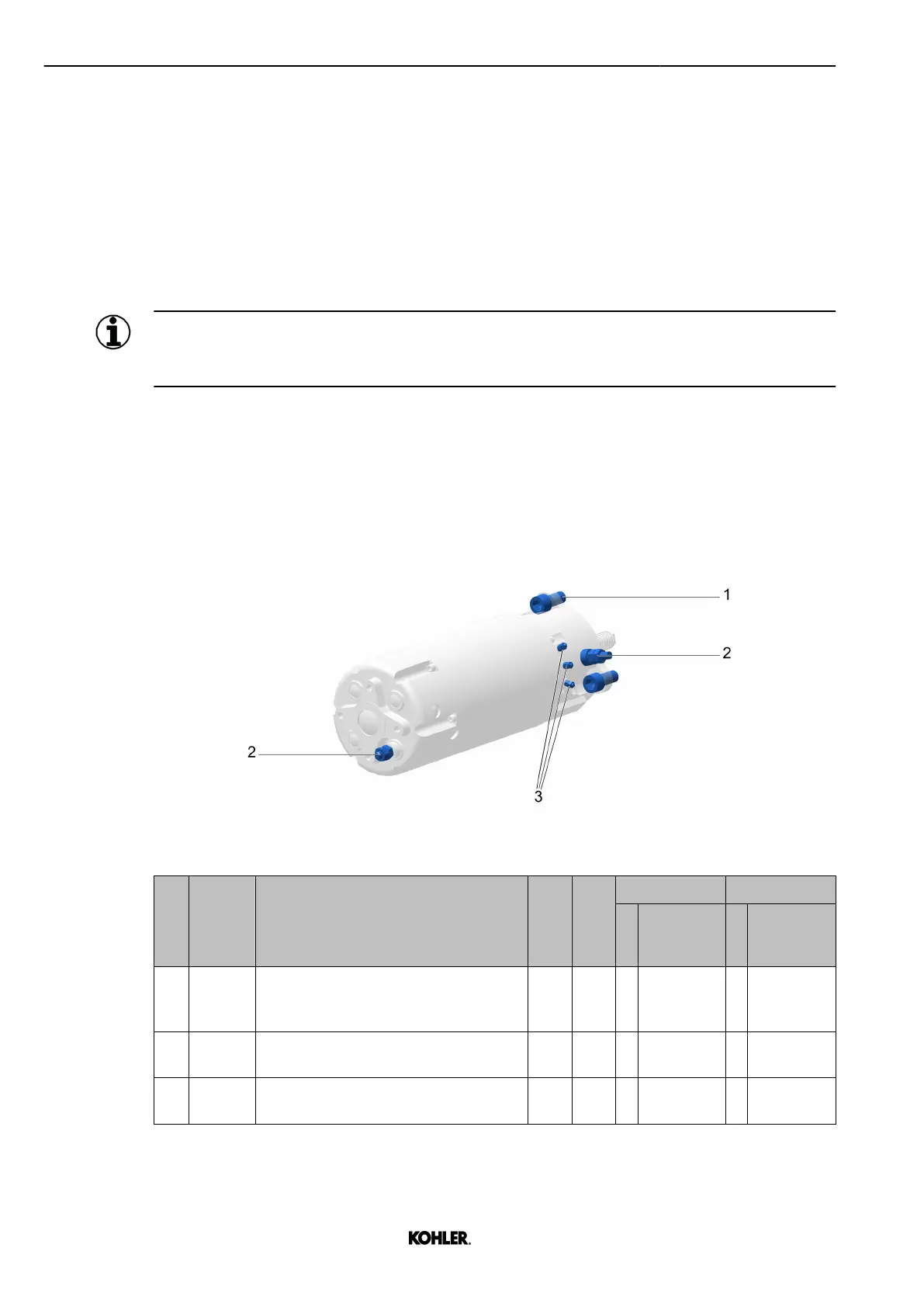

Fig. 266: Starter screws and connections
Reference
Key
Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 450AA ISO 4762 M16x2x35-10.9-FLZN - Yes 1 180 Nm
(133 ft-lb)
***
- -
2 - Nut - - 1 9.5 Nm
7 ft-lb
- -
3 - Nut - - 1 1.6 Nm
1 ft-lb
- -
Tab. 51: Tightening specifications table
244
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
