Repair
Exhaust gas aftertreatment system (depending on configuration)

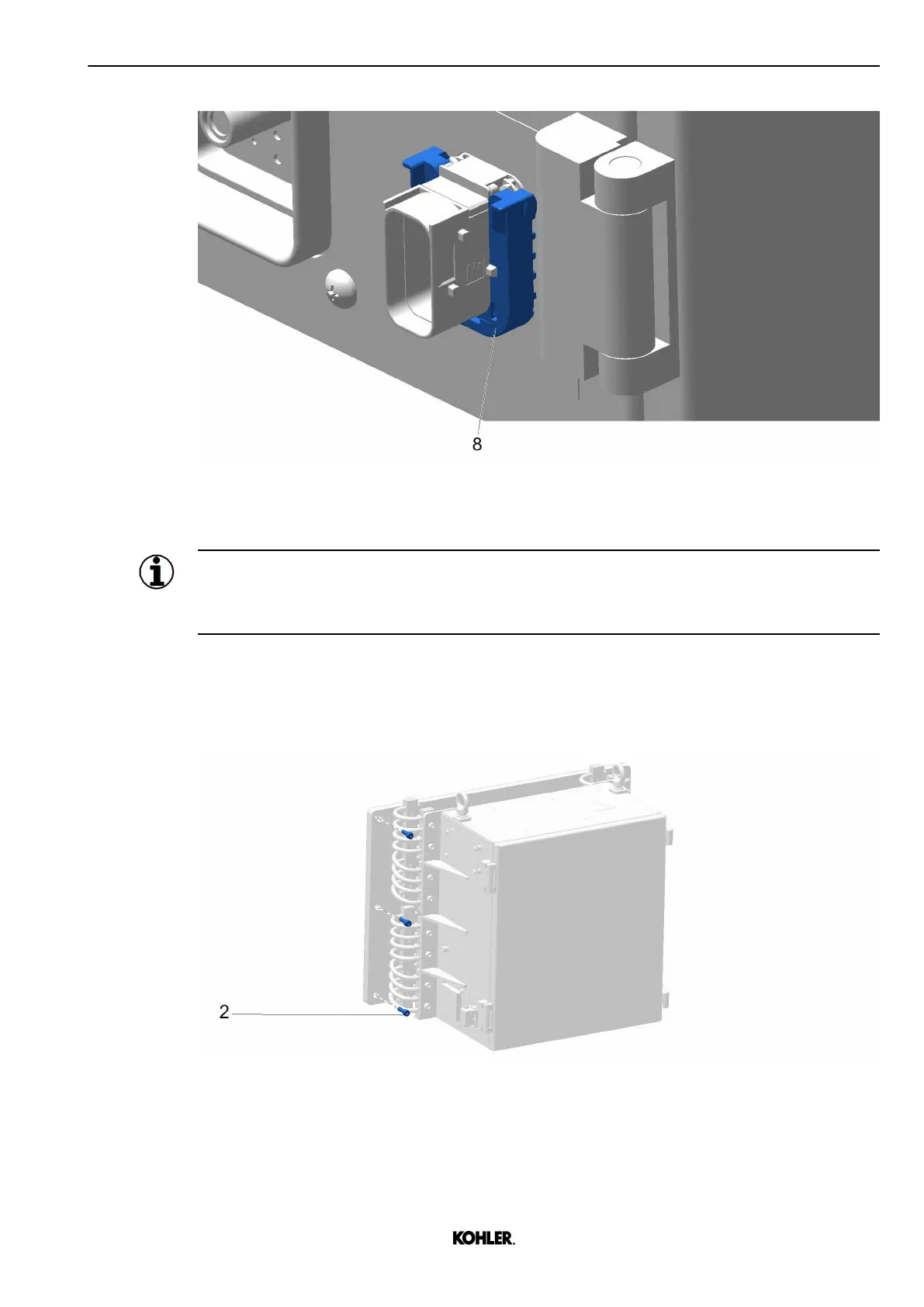

Fig. 278: Connector locking device - handling forbidden
u Disconnect 10-pin connector 6.
Information
It is forbidden to handle connector locking device 8 on the pump side.
Only use the lock on the harness side to disconnect 10-pin connector 6.
u Remove the fastening screws of 48-pin connector 7.
u Disconnect 48-pin connector 7.
u Disconnect connectors 4, 5 of the diesel exhaust fluid lines.
Fig. 279: Removing screws
u Remove screws 2.
u Remove pump 1.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
255
