Repair
Rocker arms
Consumables and equipment
–
Engine oil
–
Rags
–
Cleaner
Overview

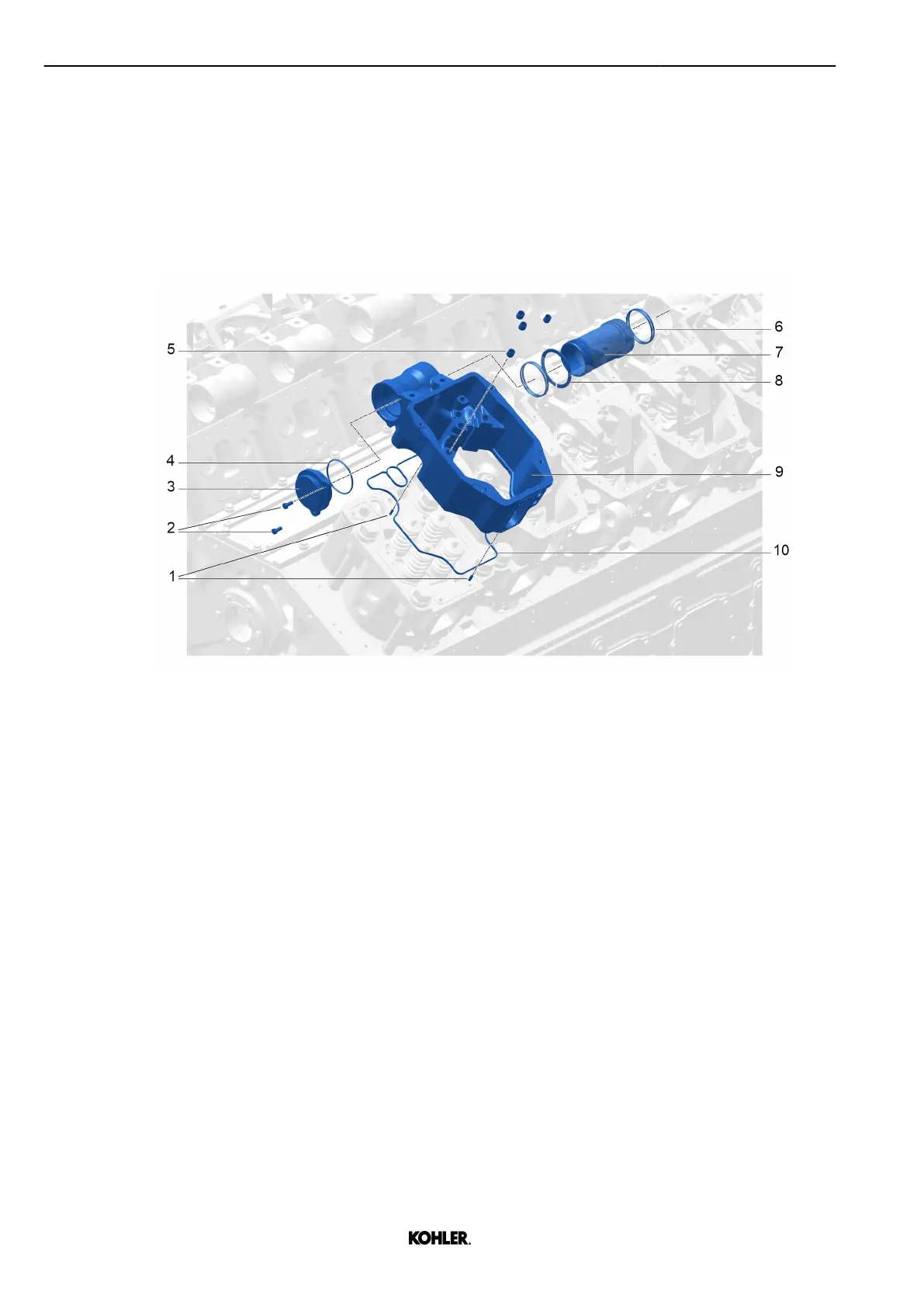

Fig. 72: T
ask overview
1
Positioning pin
6
Seal (x4)
2
Screw (M8
)
7
Coolant pipe HT
3
Closing cover
8
Locking ring
4
Seal
9
Rock
er arm housing
5
Fitting sleeve (x5)
10
Seal
82
© 2022 by Kohler Co. All righ
ts reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
81
83
