Driving gear

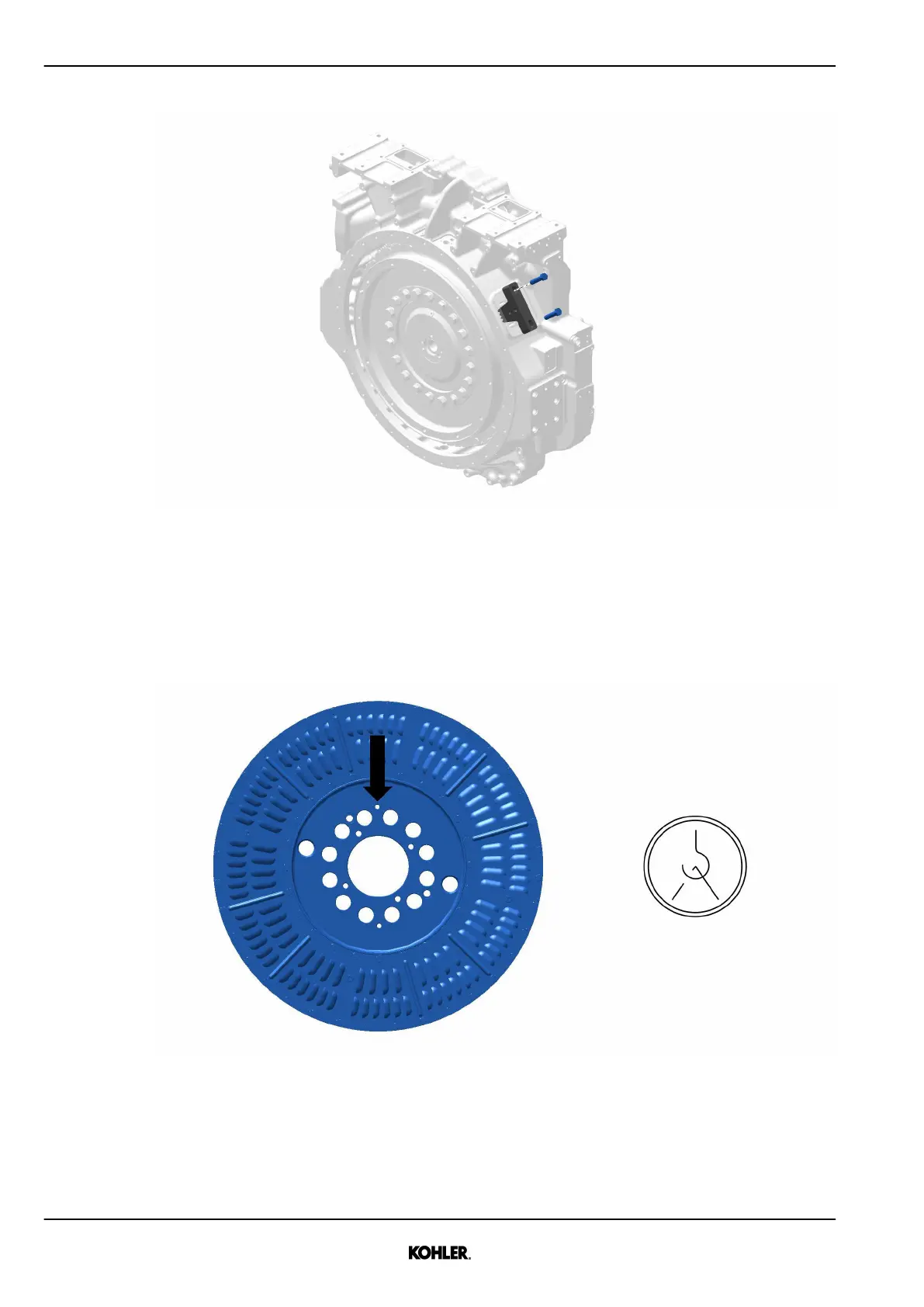

Fig. 110: Locking device
u Install locking device with screws (M16) to lock crankshaft.
u Remove two diametrically opposed bolts 4.
u Install guiding rods.
u Remove bolts 4 and disk 3.
Fig. 111: Lifting thread location
u Install lifting device on the lifting thread.
u Remove screws 2.
u Remove torsional vibration damper 1.
