Service and Repair Manual Repair
Driving gear
Overview

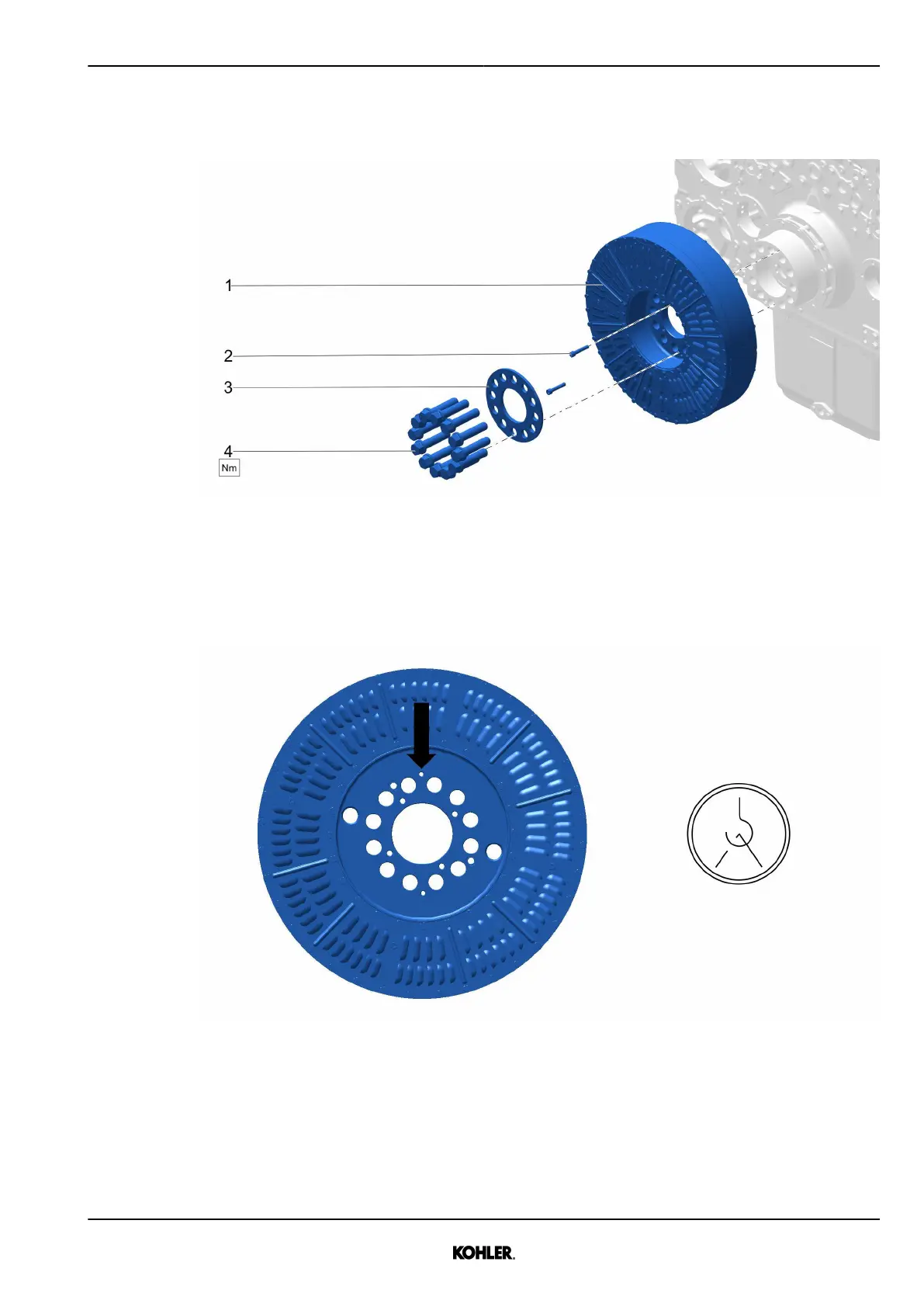

Fig. 108: Task overview
1 Torsional vibration damper 3 Disk
2 Allen screw (M12) 4 Bolt (M28)
Removal
Fig. 109: Lifting thread location
u Using the turning device, rotate the torsional vibration damper so that the lifting thread is located
at the top. (For more information see: 4.1.2 Turning device, page 269.)
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
101
