Repair Service and Repair Manual
Fuel system

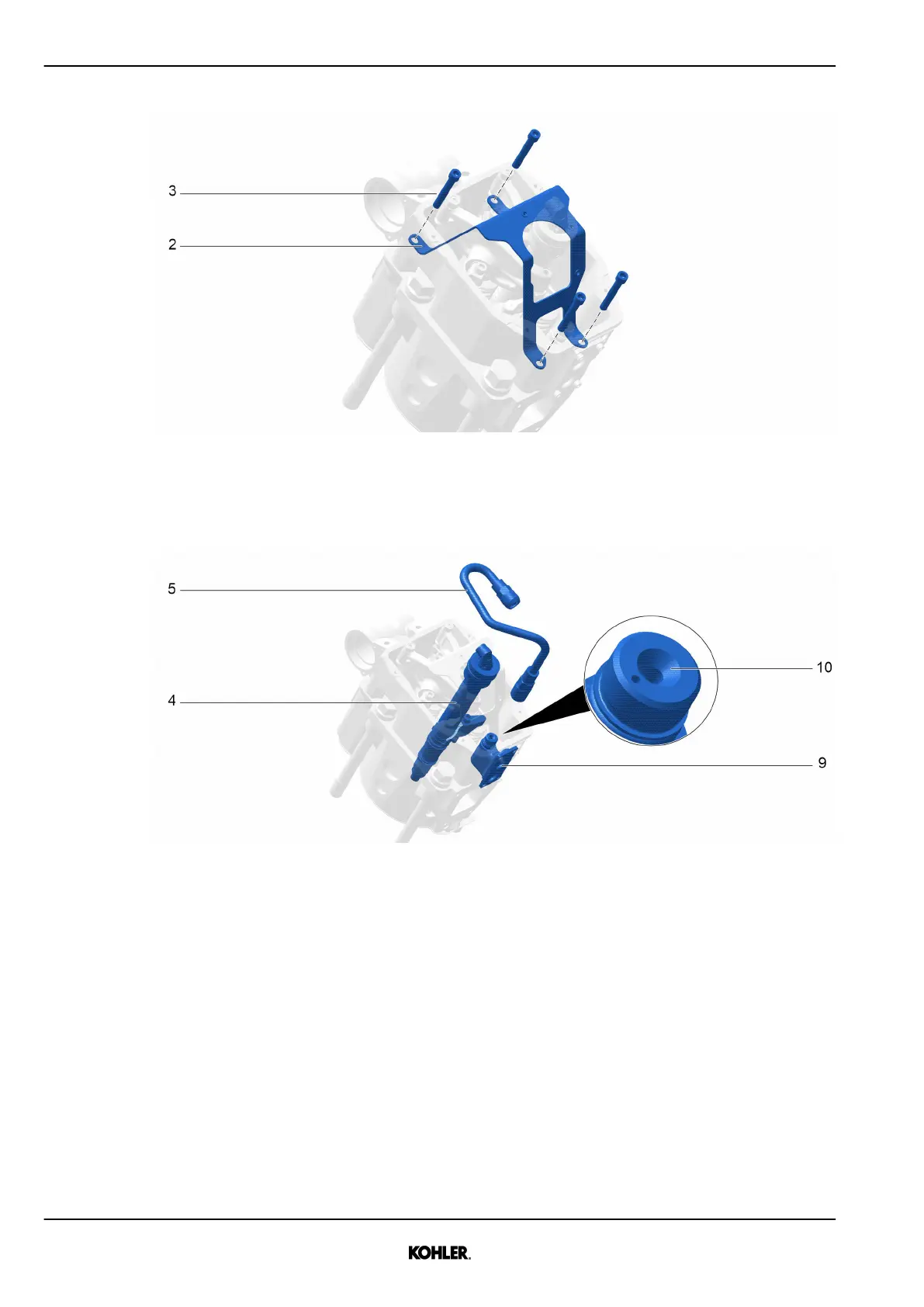

Fig. 144: Installing retaining plate
u Lubricate screws 3 with engine oil.
u Position retaining plate 2 with screws 3.
Fig. 145: Installing high-pressure pipe
u Lubricate threads and cones of high-pressure pipe 5 with clean engine oil.
u Lubricate o-rings of adaptor 9 with Castrol Optimol Paste White T.
u Push back the union nut of fuel pipe.
u Install high-pressure pipe 5 above the adaptor 9.
u Pre-tighten screw 6 to torque. (For more information see: Tightening specifications, page 129.)
u Pre-tighten high-pressure pipe 5 to torque. (For more information see: Tightening specifications,
page 129.)
u Tighten screw 6 to torque. (For more information see: Tightening specifications, page 129.)
u Tighten high-pressure pipe 5 to torque. (For more information see: Tightening specifications,
page 129.)
128
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
