Kohler KD83V16

Service and Repair Manual Repair
Fuel system
Special tool Designation
Guiding rod M12 (x2)
Tab. 33: Special tools
Consumables and equipment
– Vaseline
– Oil
– Castrol Optimol paste white T
– Rags
– Cleaner
Overview

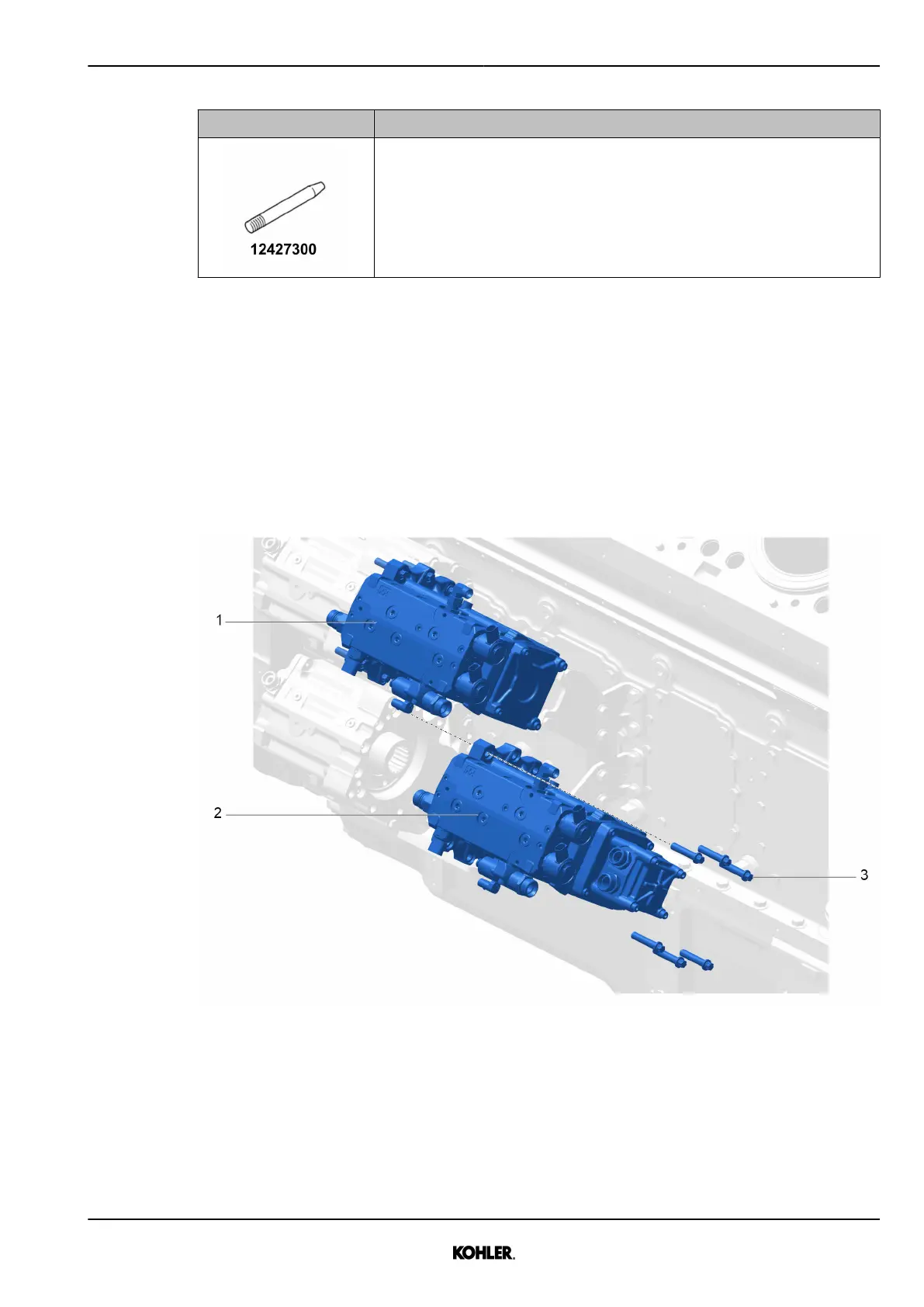

Fig. 154: Task overview
1 HP Fuel pump without LP pump 3 Screw (M12)
2 HP Fuel pump with LP pump
Removal
u Remove a first screw 3 and a second one diametrically opposed.
u Place guiding rods in place of the two screws.
KD83V16 33525088901_2_1 EN_US
2021-07
