Charge air system
u Remove compensator 5 with seals 2.
u Remove screws 8, 16 with locking plates 9 and distance sleeves 17.
u Remove clamps 7, 18.
u Remove screws 10 with nuts 4.
u Remove pipe 6.
u Remove screws 11.
u Remove compensator 5 with seals 2.
u Remove screws 3, 11, 15 with nuts 1.
u Remove compensator 12 with seals 2.
u Remove screws 14.
u Remove end covers 13 with seals 2.

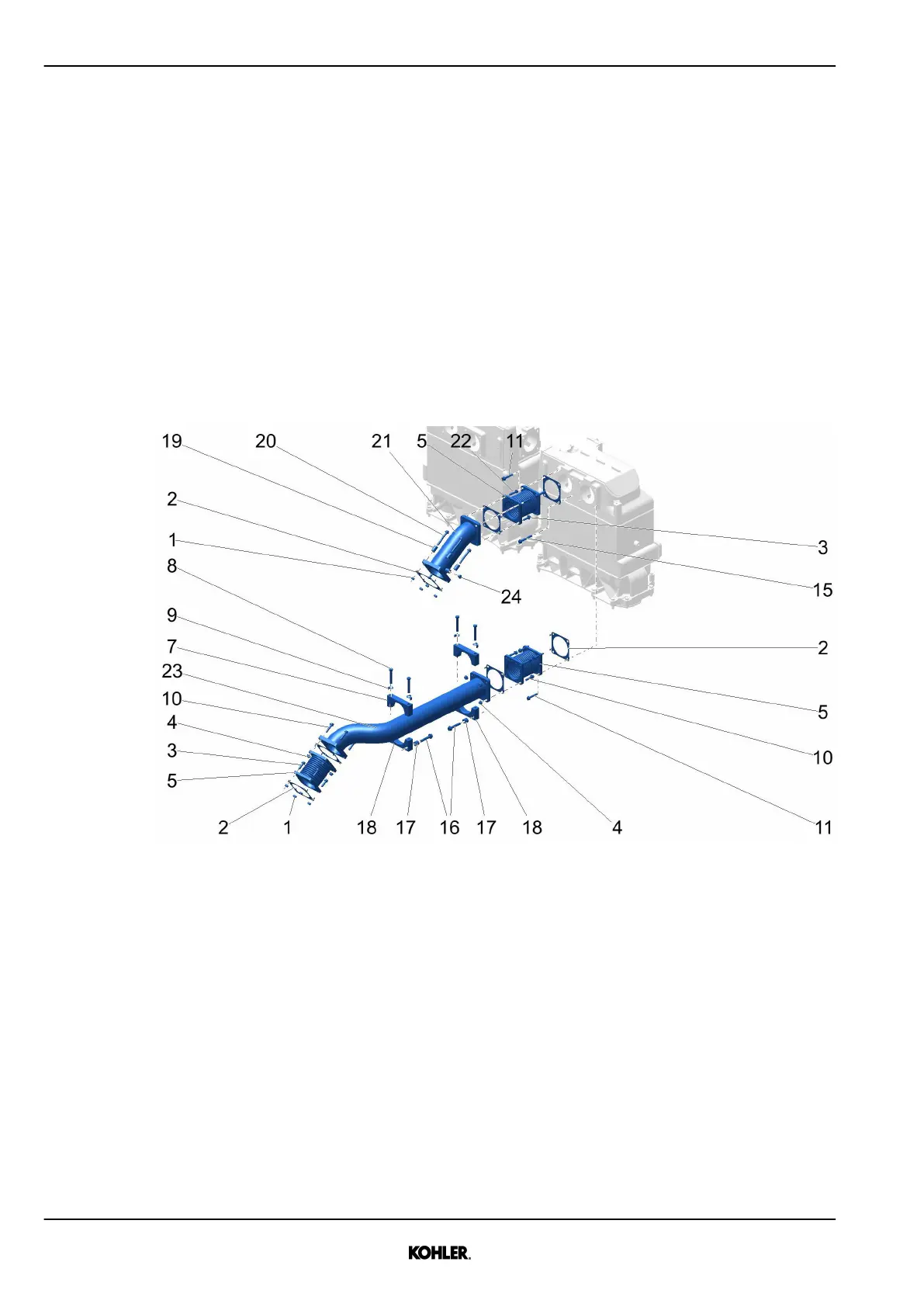

Fig. 164: Removing charge air lines
u Remove screws 3, 10 with nuts 1.
u Remove compensator 5 with seals 2.
u Remove screws 8, 16 with locking plates 9 and distance sleeves 17.
u Remove clamps 7, 18.
u Remove screws 10 with nuts 4.
u Remove pipe 23.
u Remove screws 10.
u Remove compensator 5 with seals 2.
u Remove screws 20 with distance sleeves 19 and nuts 1.
u Remove screws 3, 22.
u Remove pipe 21 with seals 2.
144
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
