Service and Repair Manual
Charge air system

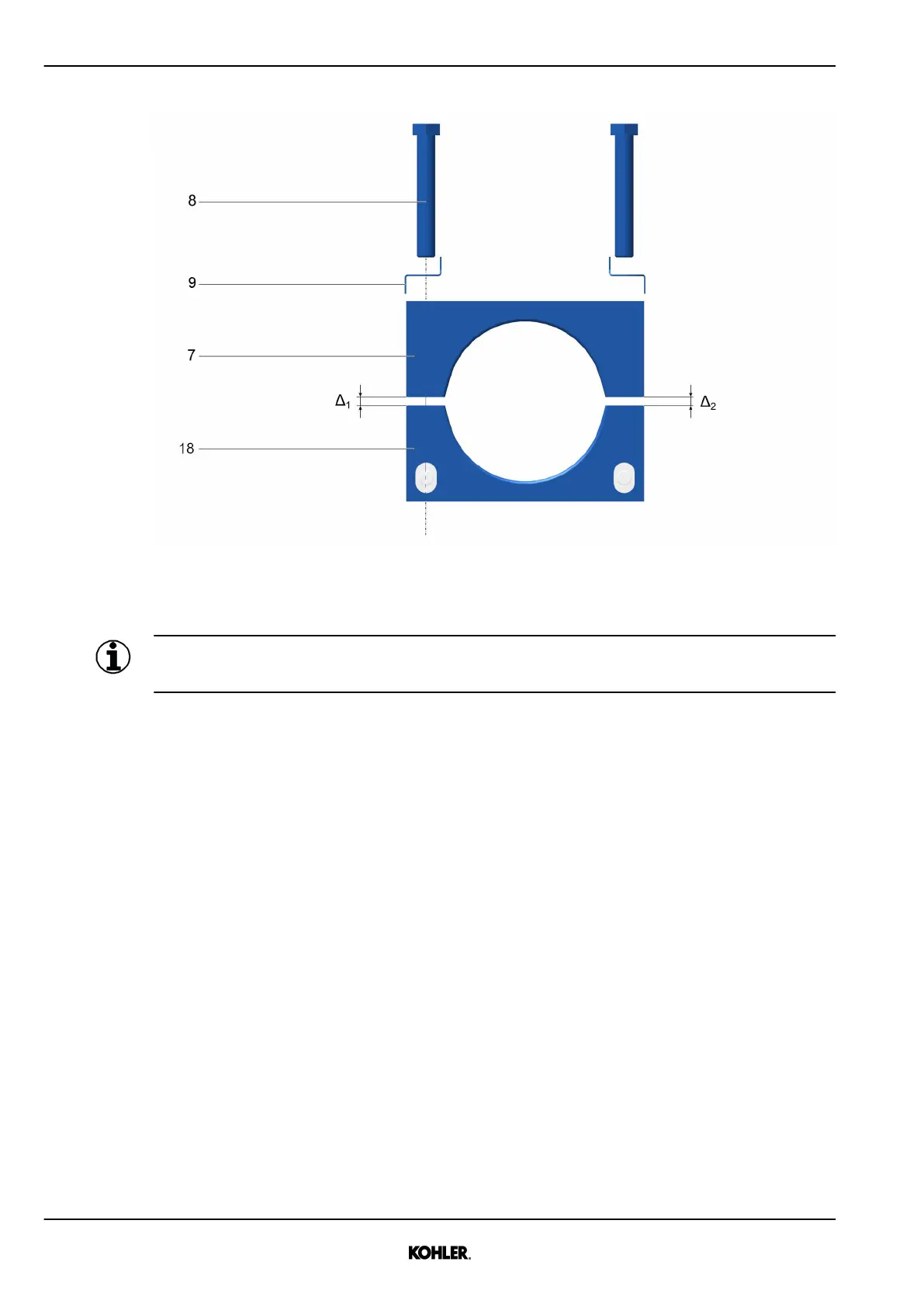

Fig. 166: Installing clamps
u
Pretighten both screws
8
simultaneously to ensure
Δ
1
=
Δ
2
after tightening.
Information
Bend locking plates
9
after assembly
.
u
T
ighten screws
8
to torque.
146
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
145
147
