Charge air system

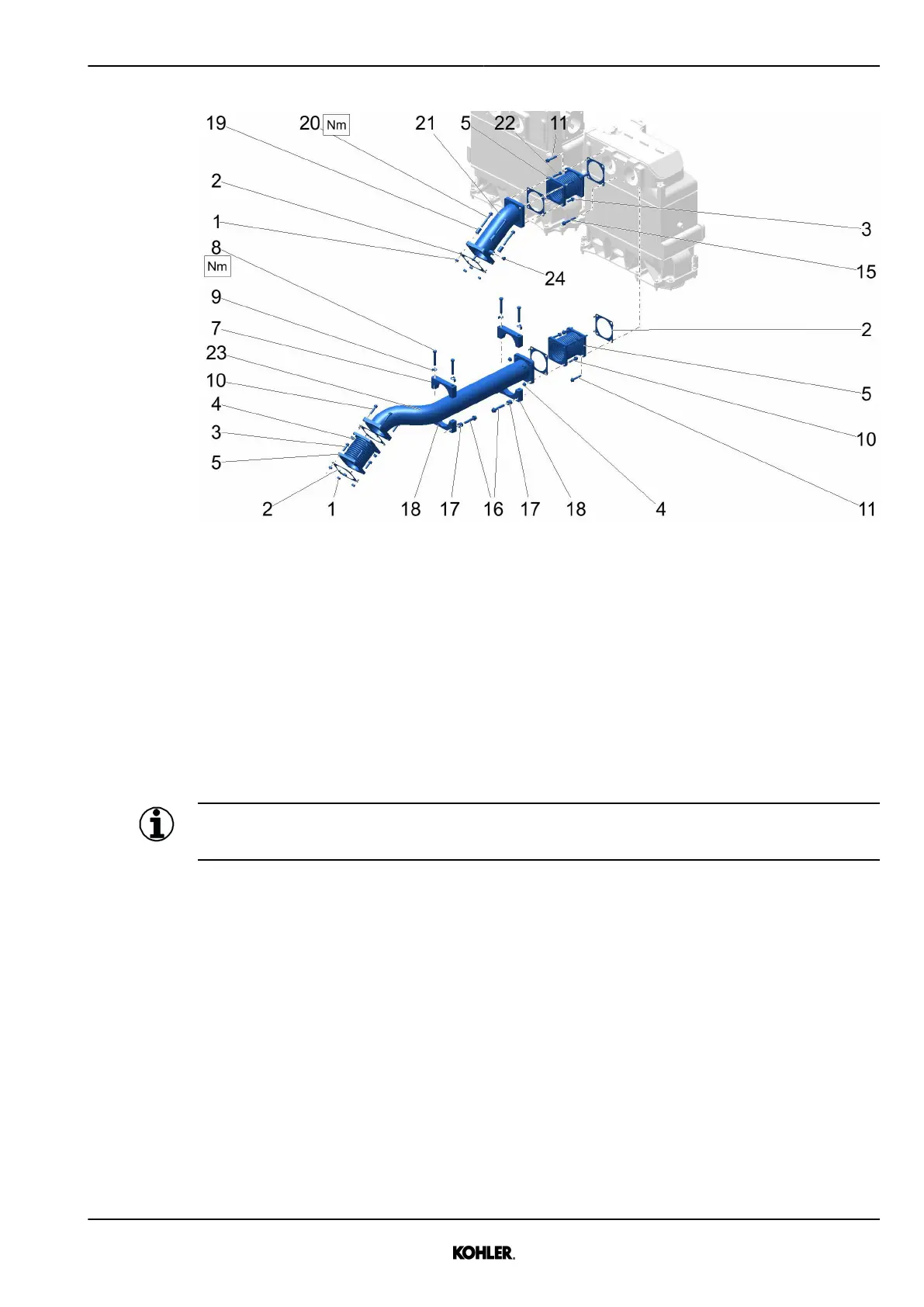

Fig. 167: Installing compensators and charge air lines
u Assemble pipe 21 with compensator 5 using screws 3, 22 and seal 2.
u Screw assembly to charge air cooler with screws 11, 15 and seal 2.
u Screw assembly to turbocharger with screws 20, distance sleeves 19, seal 2 and nuts 1.
u Install screw plug 24.
u Assemble pipe 23 with compensators 5 on both sides using screws 10, seals 2 and nuts 4.
u Screw assembly to charge air cooler with screws 11 and seal 2.
u Screw assembly to turbocharger with screws 3, seal 2 and nuts 1.
u Screw clamps 7, 18 with screws 8, 16, locking plates 9 and distance sleeves 17.
Information
Bend locking plates 9 after assembly.
u Tighten screws 8 to torque.
Specific values
Not applicable.
