Kohler KD83V16

Repair Service and Repair Manual
Charge air system
8 Screw (M12) 16 Clamp

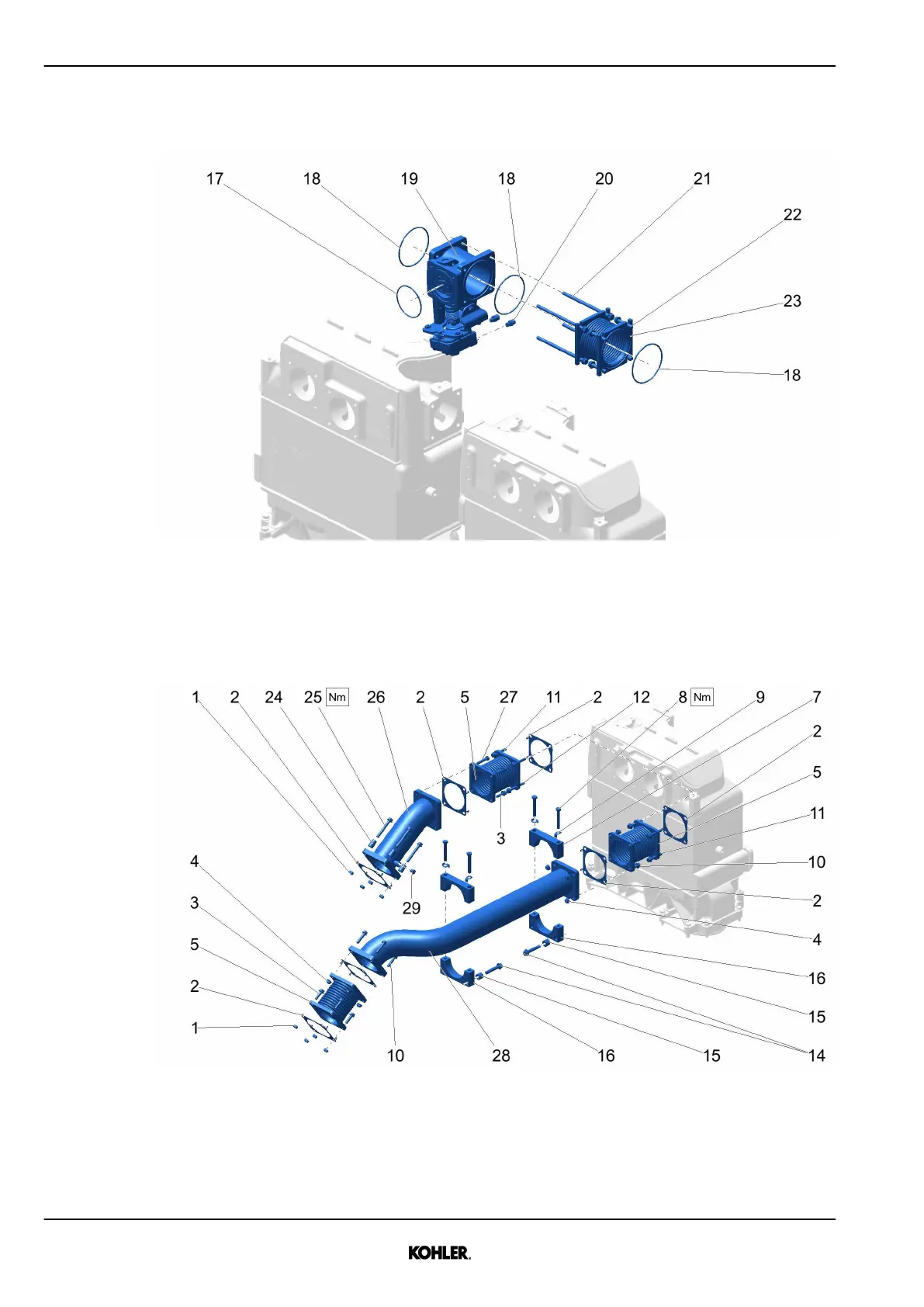

Fig. 170: Task overview
17 O-ring 21 Screw (M10)
18 O-ring 22 Screw (M10)
19 Flap with actuator 23 Compensator
20 Flange joint
Fig. 171: Task overview
24 Distance sleeve 27 Screw (M10)
25 Screw (M10) 28 Pipe
26 Pipe 29 Screw plug
