Repair Service and Repair Manual
Charge air system

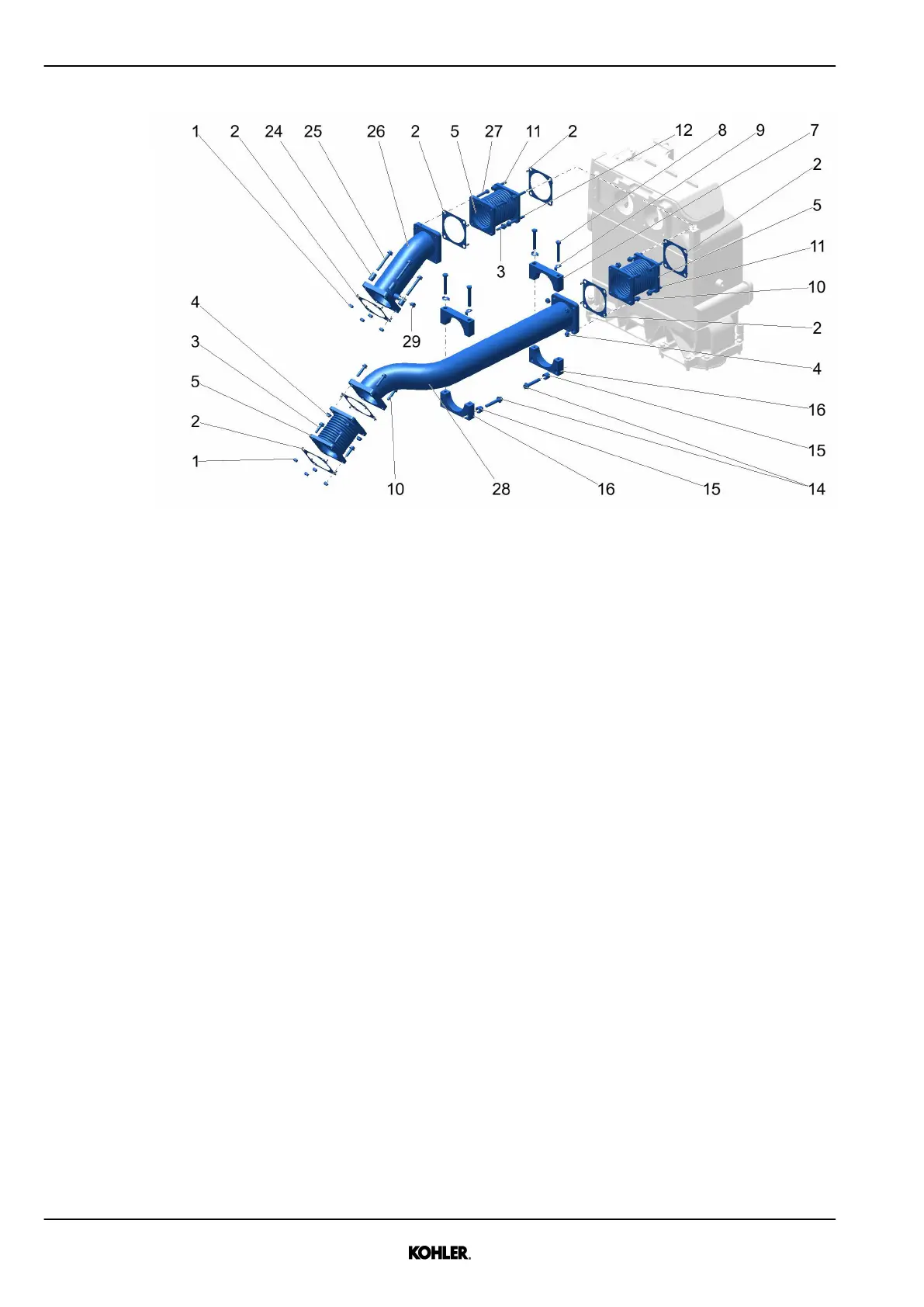

Fig. 173: Removing charge air lines
u Remove screws 25, distance sleeves 24, and nuts 1.
u Remove screws 3, 27.
u Remove pipe 26.
u Remove screws 11, 12.
u Remove compensator 5, and seals 2.
u Remove screws 14, and distance sleeves 15.
u Remove screws 8, and locking plates 9.
u Remove clamps 7, 16.
u Remove screws 3, 10, and nuts 1, 4.
u Remove compensator 5, and seals 2.
u Remove screws 10, and nuts 4.
u Remove pipe 28.
u Remove screws 11.
u Remove compensator 5, and seals 2.
152
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
