Service and Repair Manual Repair
Exhaust gas system
Installation
u Install compensators 1 with seals 2 and V-clamps 3.
u Tighten V-clamps 3 to torque.
Specific values
Not applicable.
Tightening specifications

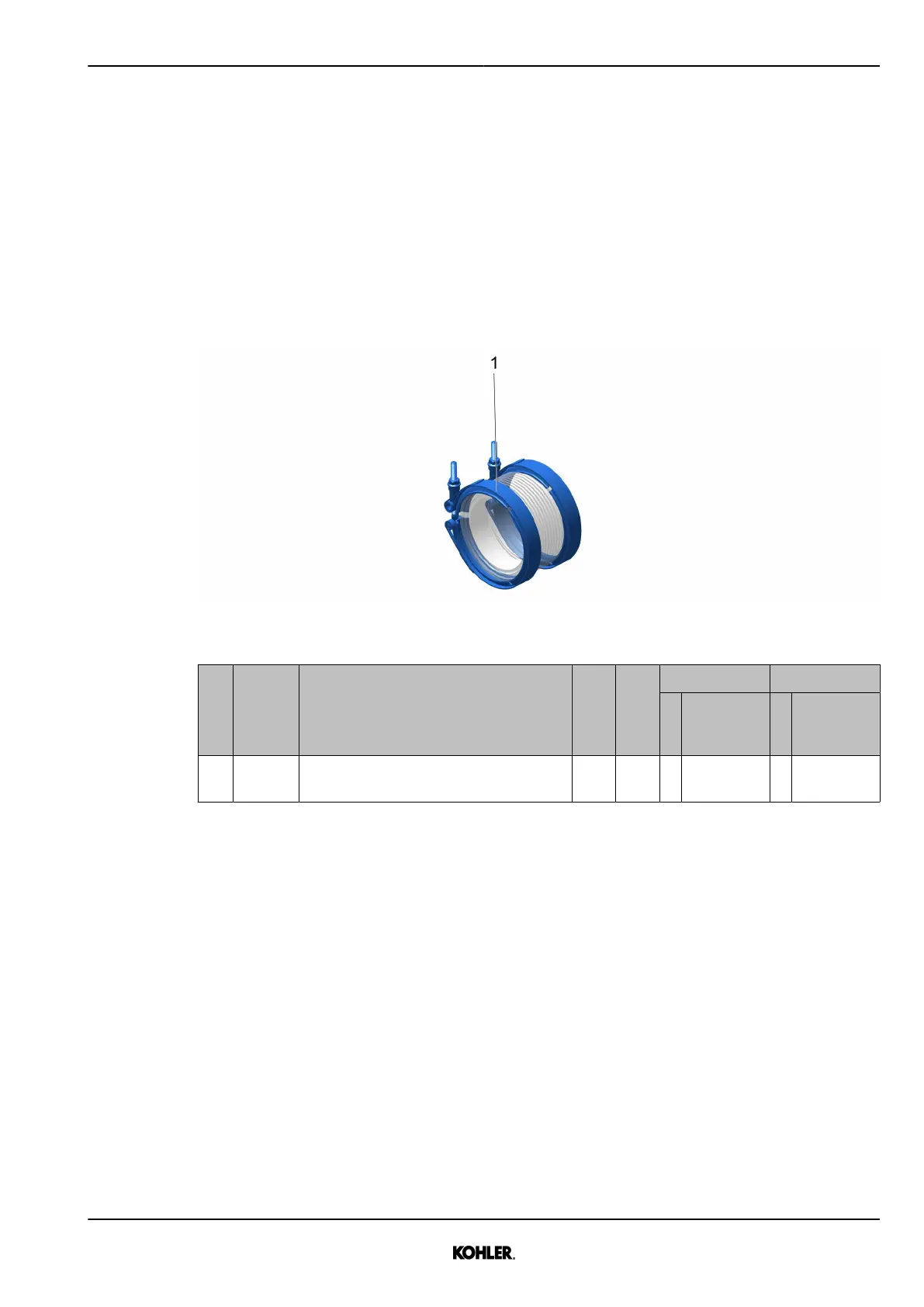

Fig. 211: V-clamps
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 410AF M8x1.25 MH Yes 1 20 Nm
15 ft-lb
- -
Tab. 41: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
Exhaust pipes removal and installation
Previous tasks
q Remove turbocharger. (For more information see: 3.8.3 Exhaust gas turbocharger removal and
installation (SL 213), page 170.)
