Service and Repair Manual Repair
Exhaust gas system
8 Sealing ring 17 Outlet manifold
9 Plug
Removal
u Loosen V-clamp 5.
u Remove screws 3 from outlet manifolds 2, 7, 12, 13, 14, 17.
u Remove outlet manifolds 2, 7, 12, 13, 14, 17.
Installation
u Install plug 9 with sealing ring 8 in outlet manifolds 13, 14, 17.
u Install plug 11 with sealing ring 10 in outlet manifold 7.
u Install plug 15 with sealing ring 16 in outlet manifold 17.
u Mount outlet manifolds 13, 14 together with seals 4, V-clamps 5 and compensator 6.
u Place outlet manifolds 13, 14 with seals 1 and screws 3.
u Mount outlet manifolds 12 on outlet manifolds 13, 14 with seals 4, V-clamps 5 and compen-
sator 6.
u Place outlet manifolds 12 with seals 1 and screws 3.
u Mount outlet manifolds 7, 17 on outlet manifolds 12 with seals 4, V-clamps 5 and compen-
sator 6.
u Place outlet manifolds 7, 17 with seals 1 and screws 3.
u Mount outlet manifolds 2 on outlet manifolds 7, 17 with seals 4, V-clamps 5 and compensator 6.
u Place outlet manifolds 2 with seals 1 and screws 3.
u Tighten plugs 9, 11, 15, V-clamps 5 and screws 3 to torque.
Specific values
Not applicable.
Tightening specifications

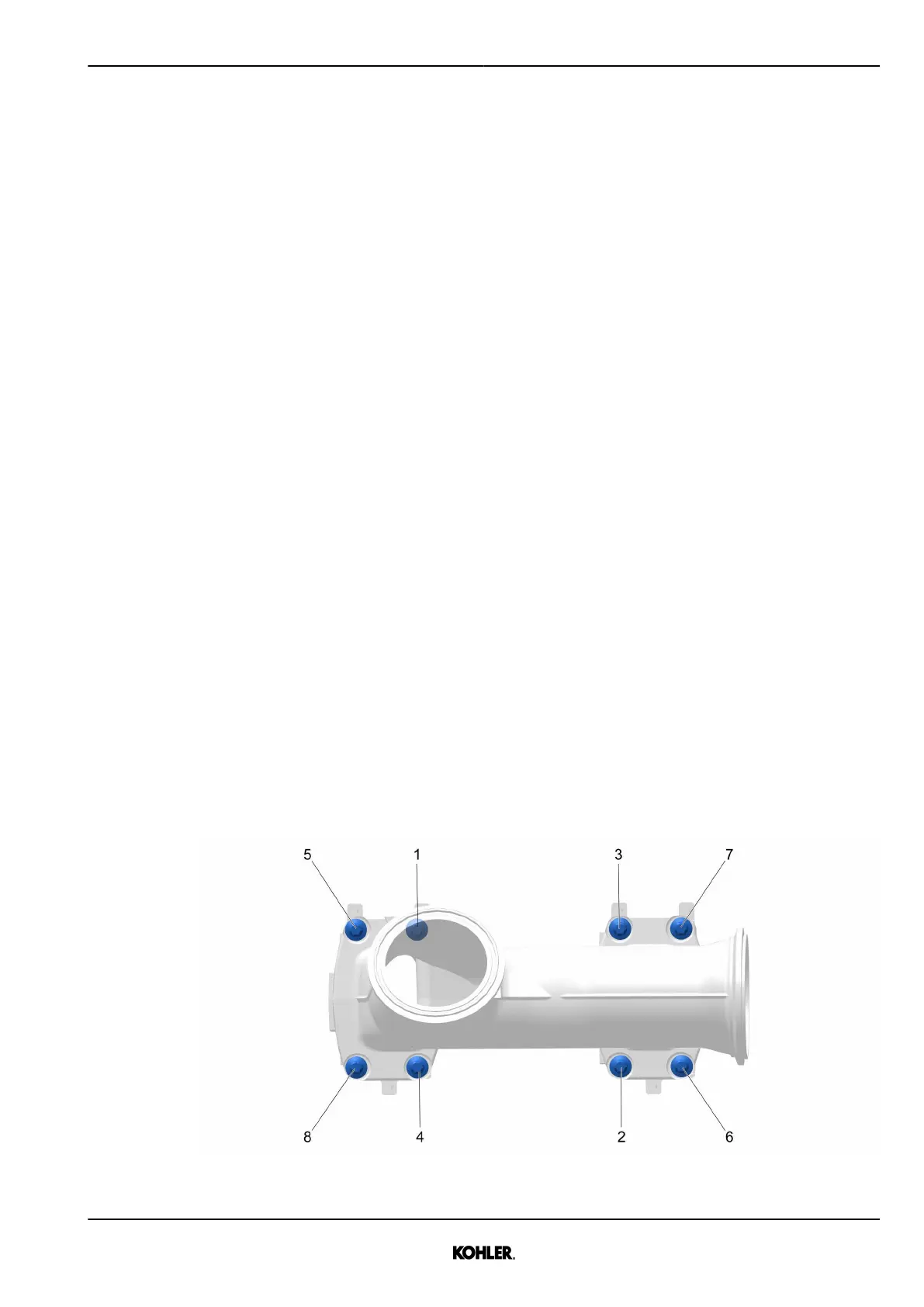

Fig. 213: Exhaust pipe screws tightening sequence
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
189
