Service and Repair Manual Repair
Cooling system

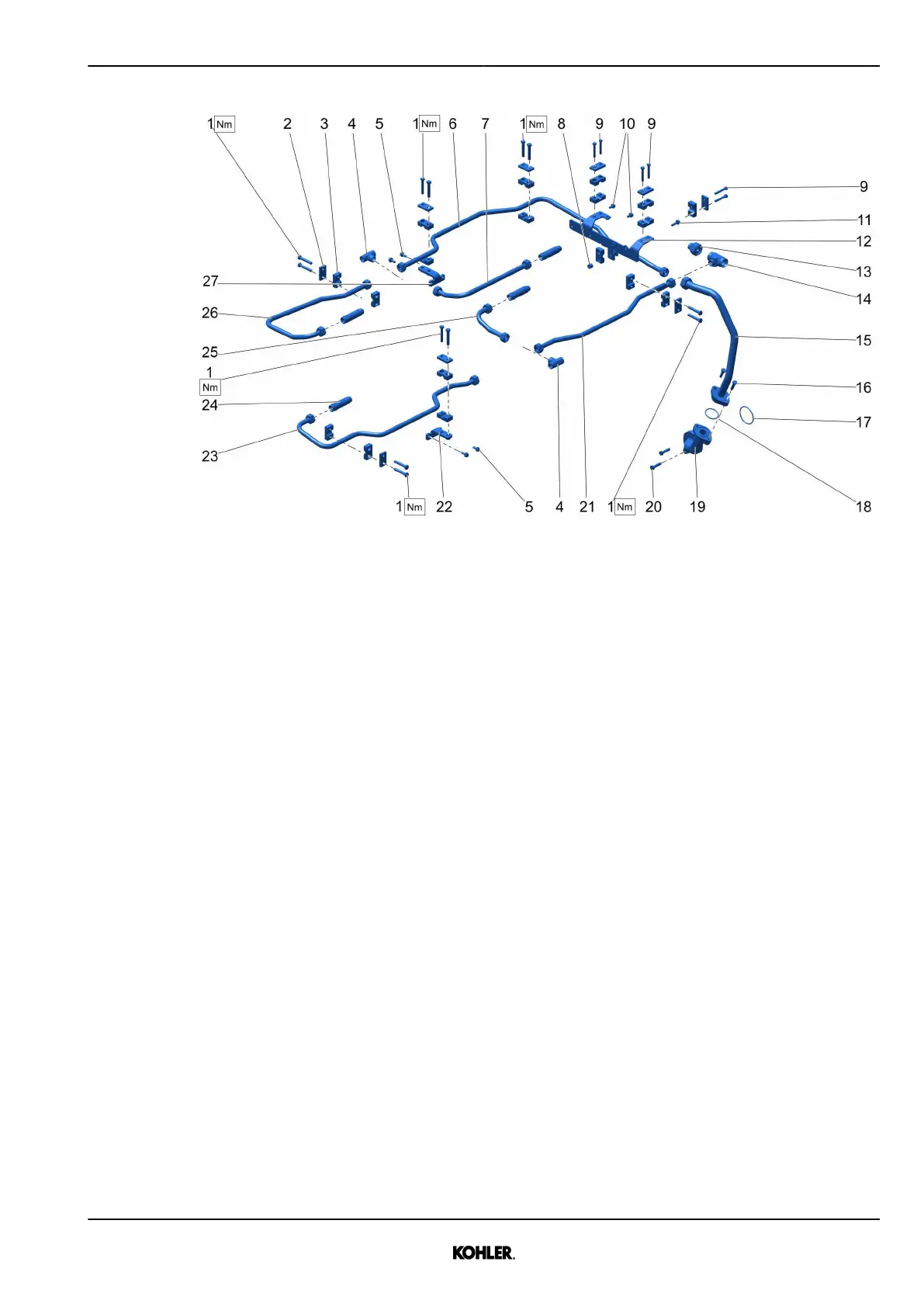

Fig. 246: Installing pipes
u Screw aggregate support connector 19 with screws 20 and o-ring 17.
u Install pipe 15 with screws 16 and o-ring 18.
u Mount pipes 6, 7, 15, 21, 23, 25, 26 with T connectors 4, 14 and flange joint 13.
u Install fittings 24.
u Screw retaining plate 12 with screws 10, 11 and distance sleeve 8.
u Install retaining plate 27 with screws 1, plate 2 and clamp 3.
u Install plates 2 and clamps 3 with screws 1, 9.
Specific values
Not applicable.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
217
