Service and Repair Manual Repair
Cooling system
Installation

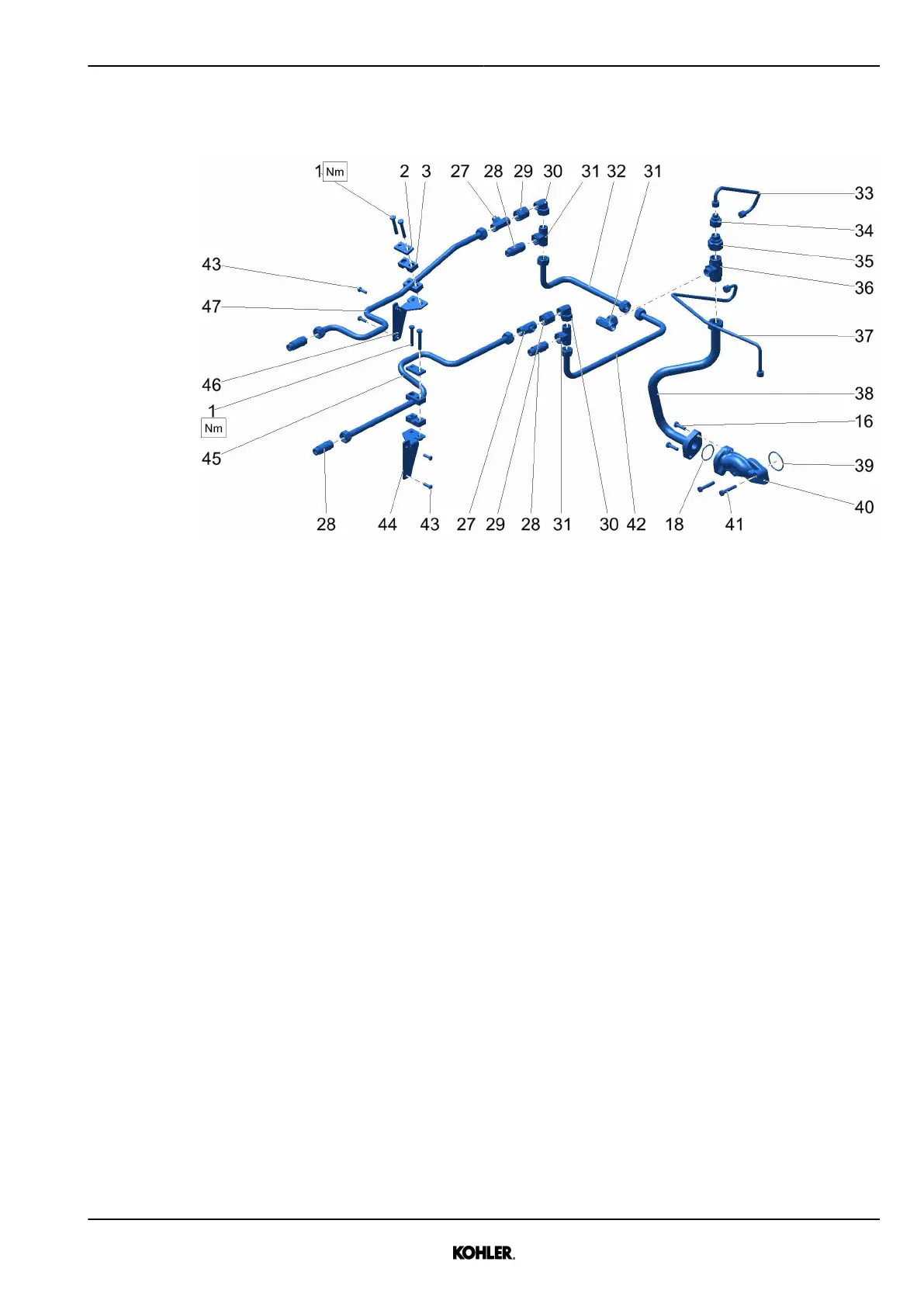

Fig. 252: Installing pipes
u Screw aggregate support connector 40 with screws 41 and o-ring 39.
u Install pipe 38 on aggregate support connector 40 with screws 16 and o-ring 18.
u Mount T connector 36 and flange joint 35 with coupling 34 between pipes 33, 38.
u Mount pipes 32, 42, 45, 47 with T connectors 27, 31.
u Install 90° connectors 30 and fittings 29 on pipe assemblies 32, 42, 45, 47.
u Install fittings 28.
u Install retaining plates 44, 46 with screws 43.
u Install plates 2 and clamps 3 with screws 1.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
223
