Cooling system

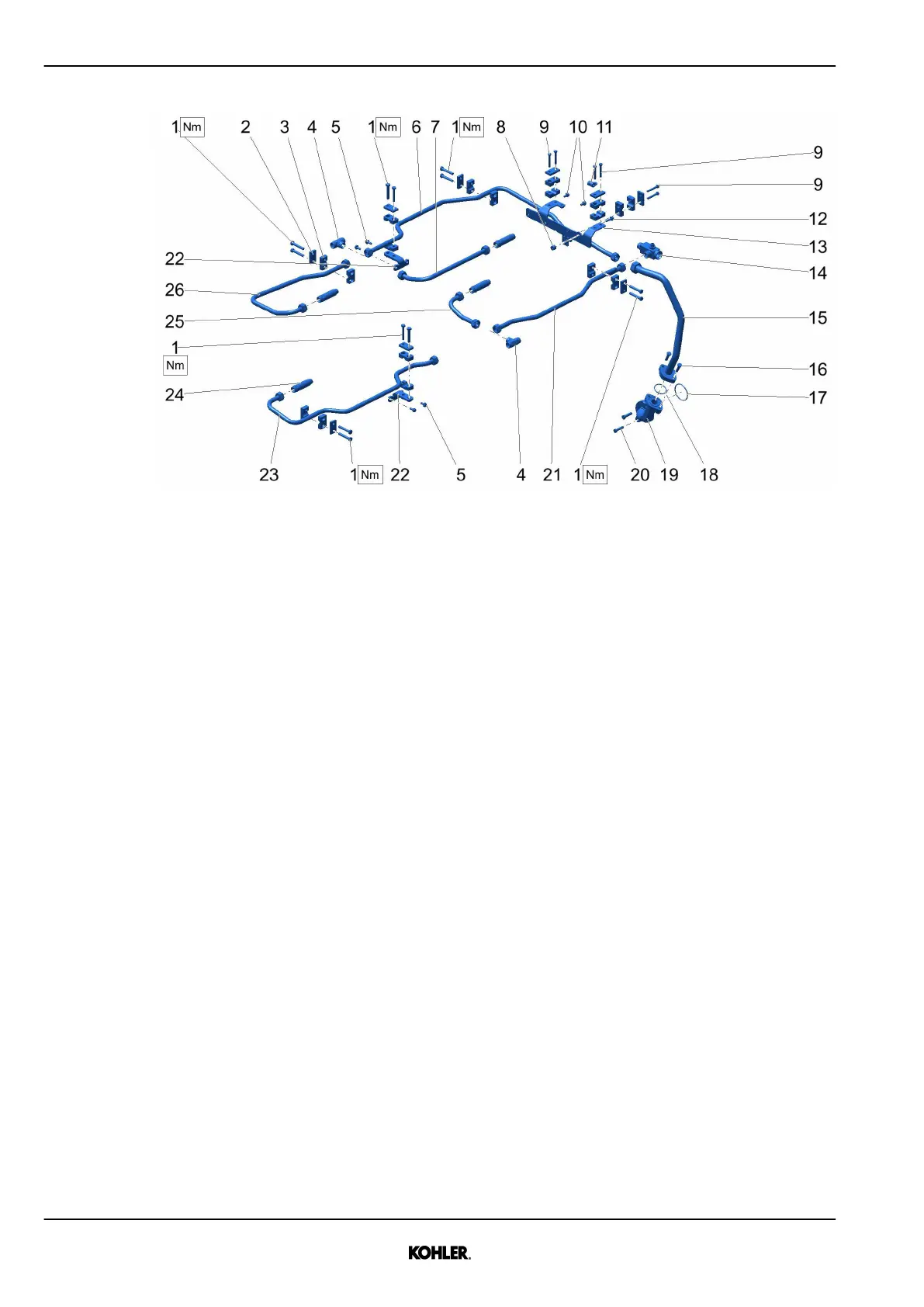

Fig. 253: Installing pipes
u Screw aggregate support connector 19 with screws 20 and o-ring 17.
u Install pipe 15 with screws 16 and o-ring 18.
u Mount pipes 6, 7, 15, 21, 23, 25, 26 with T connectors 4, 14 and adaptor 14.
u Install pipe 37.
u Install fittings 24.
u Screw retaining plate 13 with screws 10, 12 and distance sleeve 8.
u Install retaining plates 22 with screws 5.
u Install plates 2, clamps 3, clamp 11 with screws 1, 9.
Specific values
Not applicable.
