Cooling system
Special tools
Special tool Designation
Guiding rod M12x230 – Thermostat (x2)
Tab. 47: Special tools
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

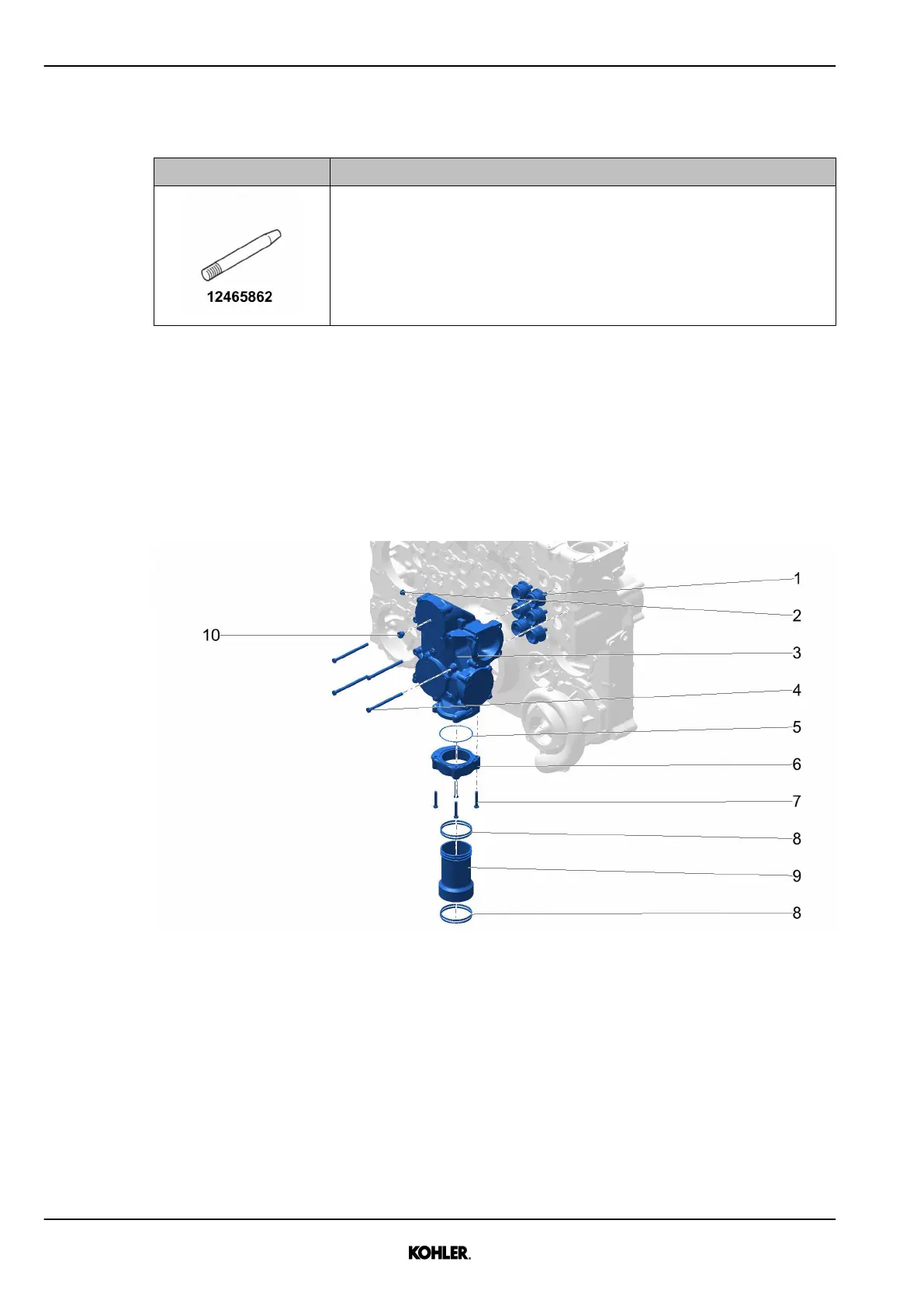

Fig. 256: Task overview
1 Thermostat 6 Flange
2 Screw plug 7 Screw (M10)
3 Thermostat housing 8 O-ring
4 Screw (M12) 9 Pipe
5 O-ring 10 Screw plug (depending on application)
Removal
u Remove two screws 4 diametrically opposed.
u Place guiding rods in place of the two screws 4.
226
