Service and Repair Manual Repair
Electrical system

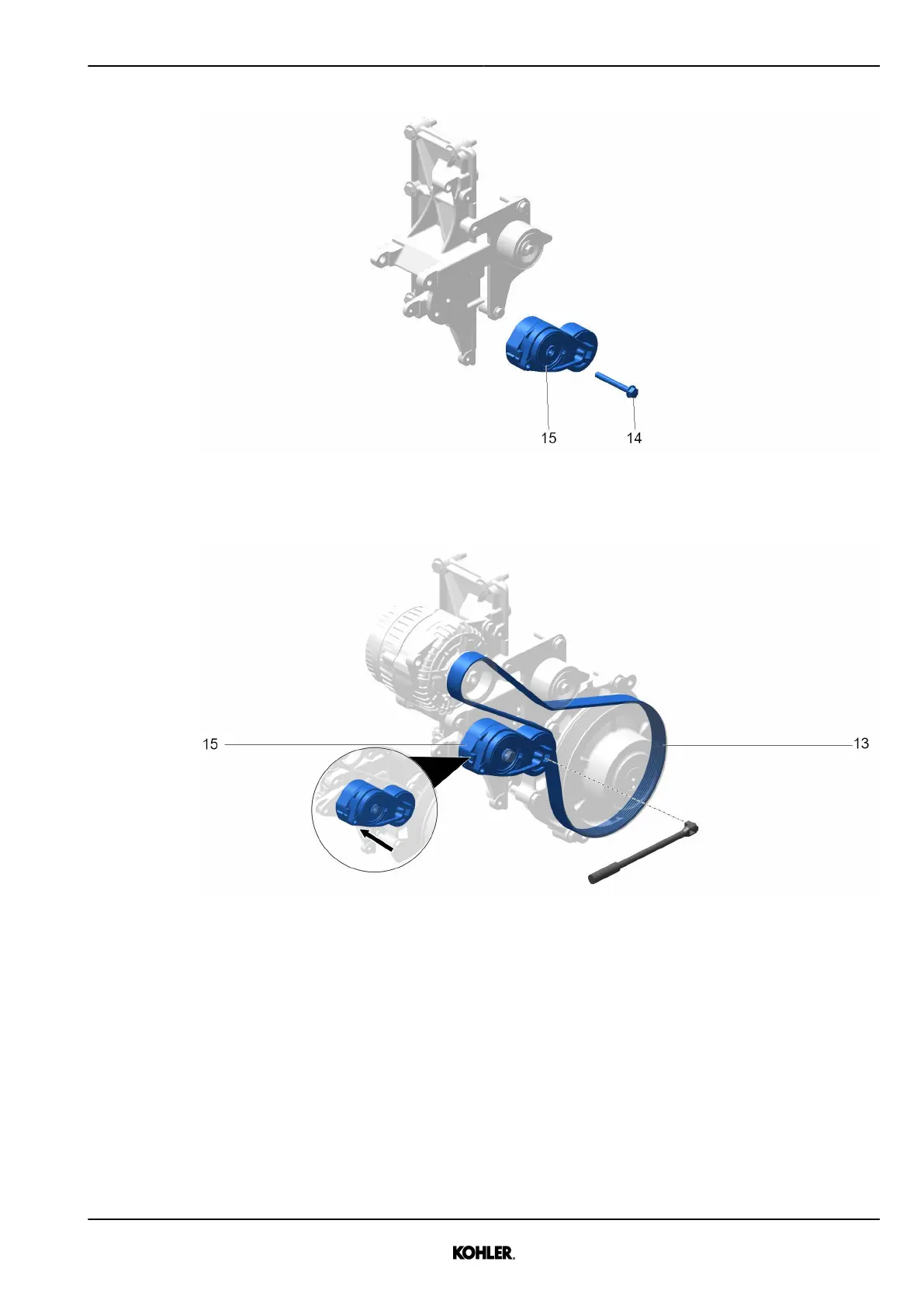

Fig. 282: Installing tensioning device
u Install tensioning device 15 on bracket with screw 14.
Fig. 283: Mounting belt
u Use 1/2” toggle in tensioning device 15.
u Pivot back the tensioning device 15 against the spring force to the limit stop.
u Use a guiding rod in the specified location to lock the tensioning device 15.
u Install belt 13 on the PTO pulley.
u Remove the guiding rod.
u Use 1/2” toggle in tensioning device 15 to tension belt 13.
u Check belt 13 tension.
