Operation and Maintenance Manual Maintenance
Lubricating system

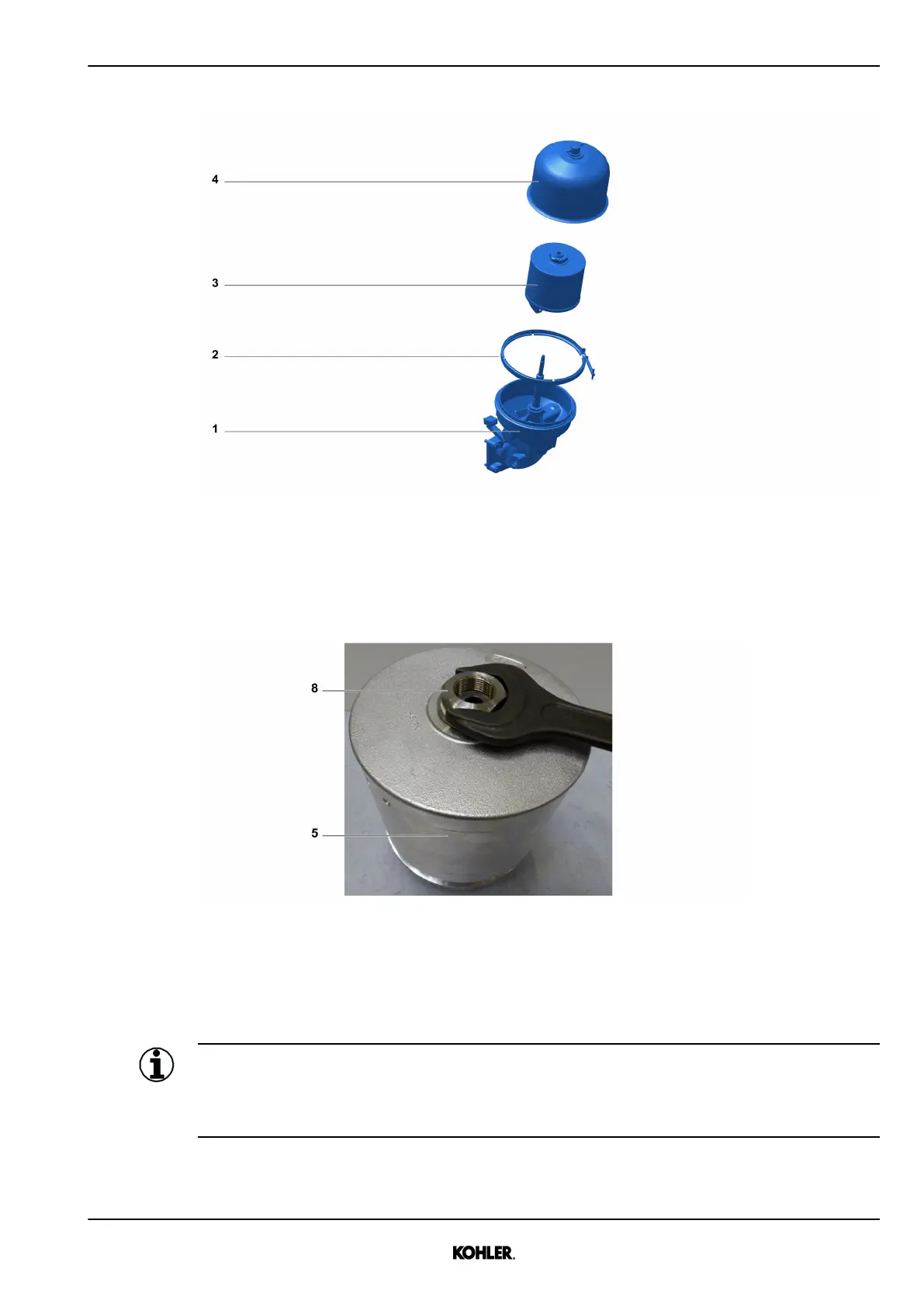

Fig. 62: Opening the centrifuge
u Unclamp and remove V-clamp 2.
u Open screw on top of cover 4.
u Remove cover 4.
Fig. 63: Opening the rotor
u Unscrew and remove the nut of rotor cover 8.
u Lift carefully the rotator cylinder 5 so that the mud remains in the cylinder.
u Recycle paper filter 6 and mud according to specific national regulations.
Information
The thickness of mud deposit inside the rotor should not be more than 45 mm (1.77“ in). Other-
wise:
u Reduce maintenance intervals and operate oil analysis.
u Clean all components of oil centrifuge.
KD83V16 33521030601_0_1 EN_US
2018-07
