Maintenance Operation and Maintenance Manual
Lubricating system
u Replace rotor cover 8 seals in cover 4.

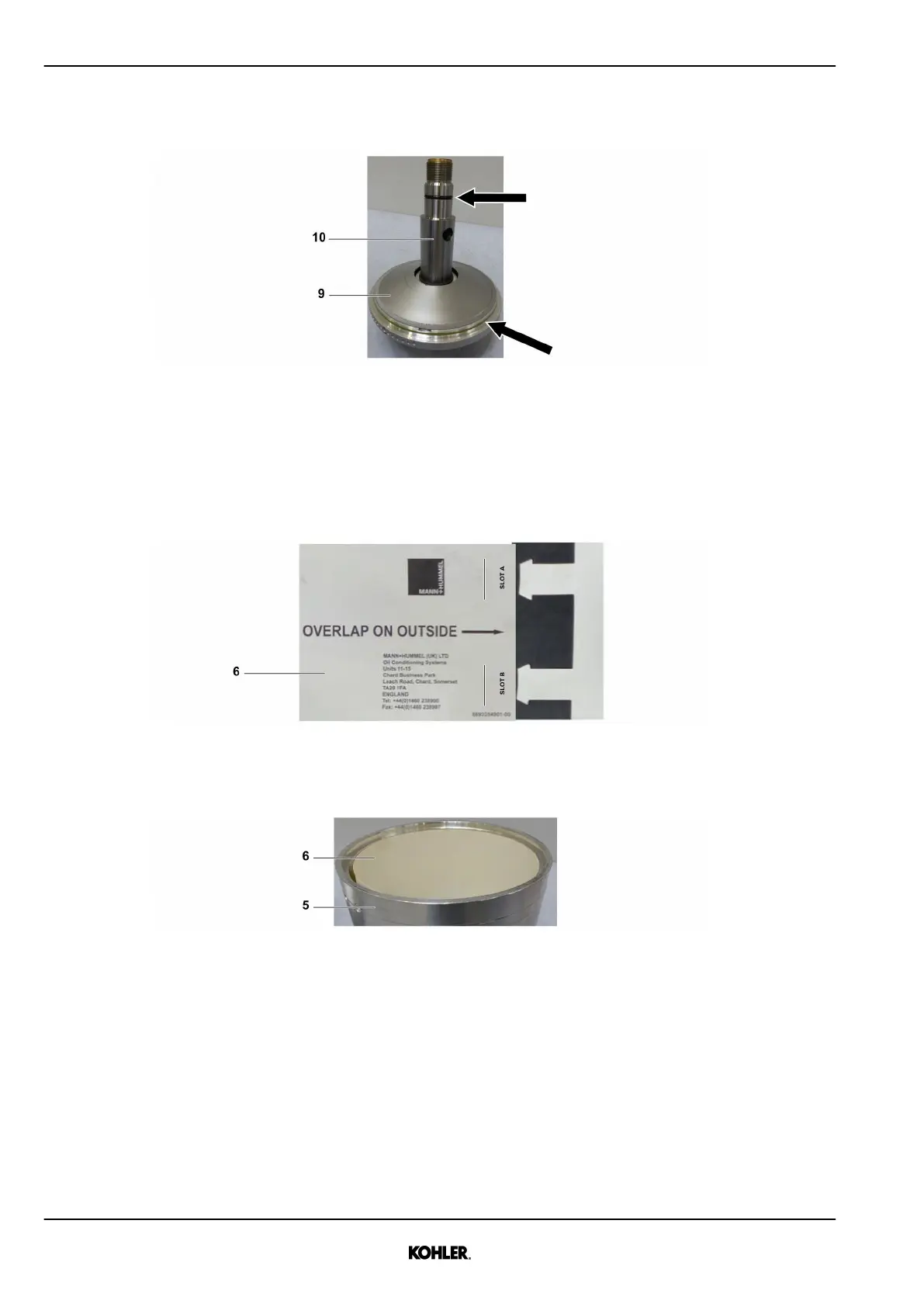

Fig. 64: Deflector disk and seals on rotor base and bearing tube
u Lift and clean the deflector disk 9.
u Clean bearing tube 10 and rotor base 7.
u Replace seals of rotor base 7 and bearing tube 10.
u Insert deflector disk 9.
Fig. 65: Paper filter preparation
u Insert paper filter 6 tabs in slot A and slot B.
Fig. 66: Inserting paper filter
u Insert paper filter 6 in rotor cylinder 5.
106
© 2018 by Kohler Co. All rights reserved.
KD83V16 33521030601_0_1 EN_US
2018-07
