6
_07
30
MIN
MAX
B B
E
B
D
C
A
B
A
F
6.4
6.5
6.6
EN
INFORMATION ABOUT REPLACEMENTS

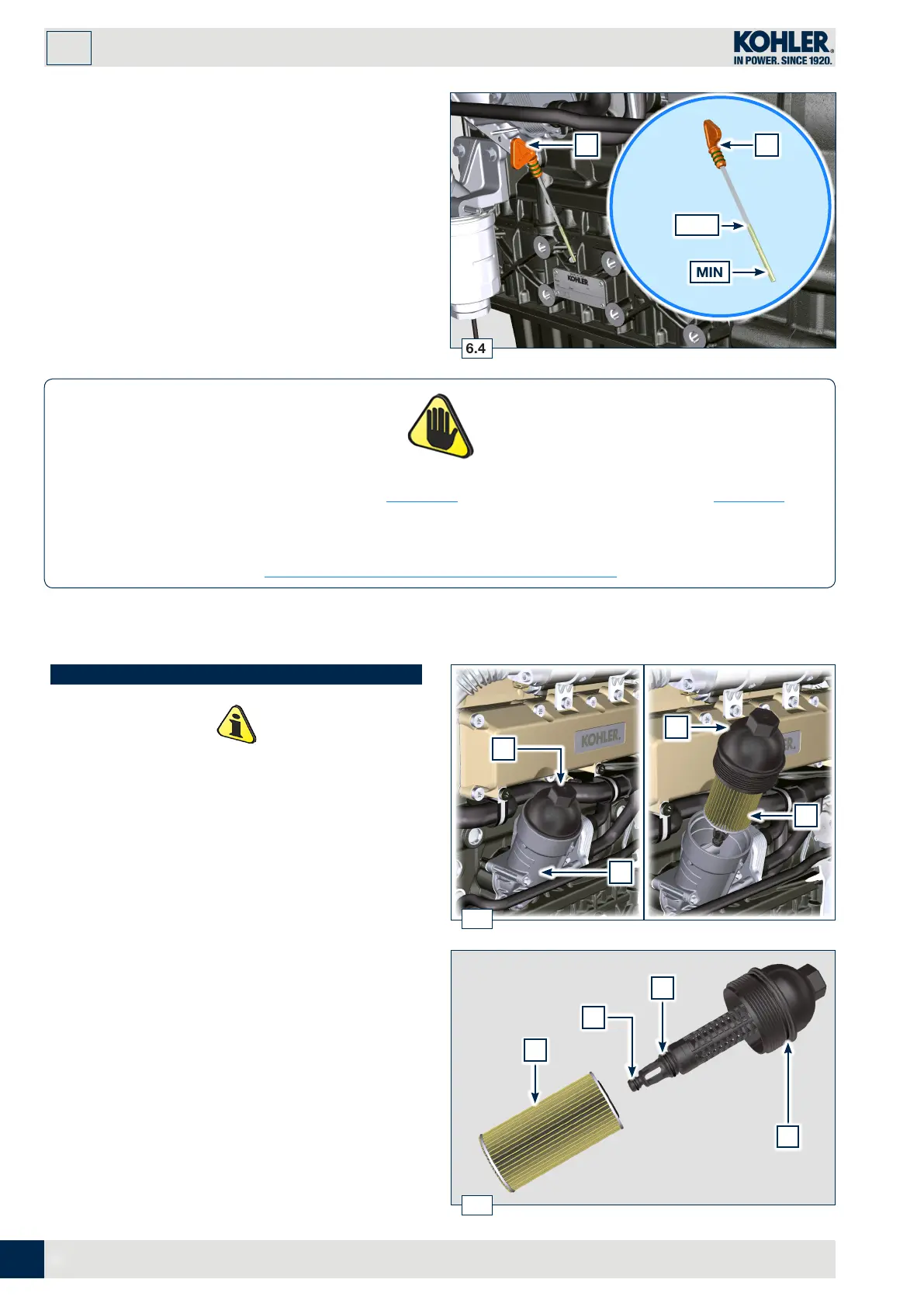

9. Fit and remove the oil dipstick B to check the level.
Pour in fluid until reaching the MAX level mark.
10. Upon completion, reinstall the oil dipstick B completely.
11. Tighten the cap A.
Warning
• Oil filter cartridge replacement (Par. 6.2) and fuel filter replacement (Par. 6.3)
• In case of low use replace it 12 months.
• For disposal of oil filter cartridge and fuel filter refer to
Par. 6.5 DISPOSAL and SCRAPPING.
6.2 Oil filter cartridge replacement
Important
• Electric/pneumatic screwdrivers are forbidden.
1. Unscrew cartridge holder cover A by performing three
complete turns and wait 1 minute.
NOTE: This operation allows to oil contained in
the support F to flow into the oil sump in
the correct way.
2. Unscrew cartridge holder cover A and check that the oil
in the lub. oil filter support F has flowed towards the oil
sump.
3. Remove the cap A as well as the oil cartridge B from the
oil filter support.
4. Remove and replace the oil cartridge B with a new one.
Remove and replace the gaskets C, D and E with new
ones.
ED0053030050
