38

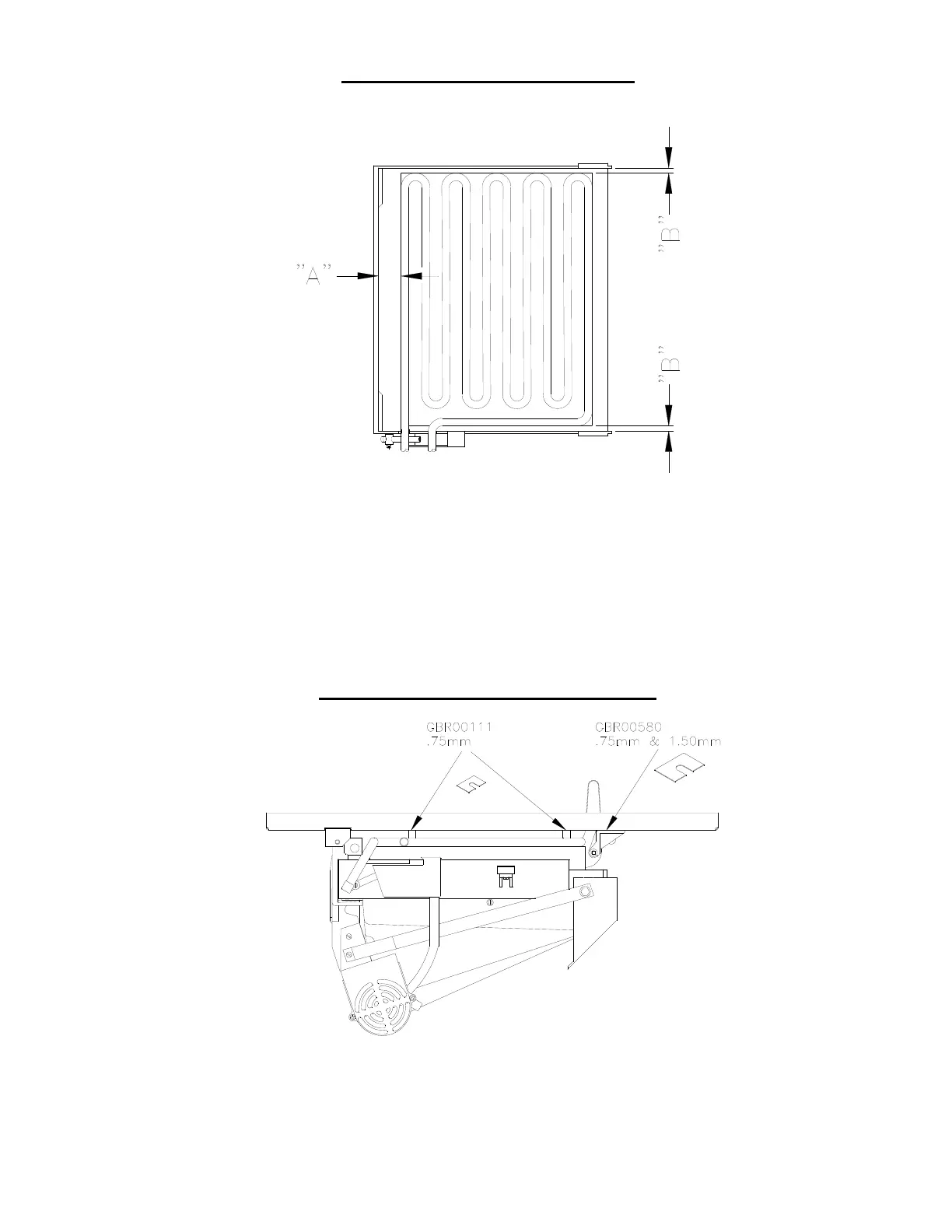

WATER PLATE ALIGNMENT
If the water plate is not aligned with the evaporator, the cubes may appear cloudy or misshapen.
Dimension “A” is not adjustable. If this dimension is out of tolerance, the evaporator or water plate
mounting components may be damaged.
Adjustments to dimension “B” can be made by sliding the front and rear hinges along the left edge
of the water plate. Lightly tap the hinges as required to align the water plate with the evaporator.
Alignment is correct when the space between the evaporator and the water plate is equal in front
and in back.
“A” = 1.5” ± 3/32” (38 mm ± 2.5 mm) “B” = 5/16” ± 1/16”(8 mm ± 1.5 mm)
WEB THICKNESS ADJUSTMENT
The web thickness between cubes (the gap between the bottom of the evaporator and the water
plate surface) can be adjusted by inserting or removing shims between the support channels and
the evaporator support posts or the cam shaft bearing brackets. Loosen the actuator motor
mounting screws before inserting or removing shims between the channels and cam shaft bearing
brackets. The web thickness specification for both C and HK models is 1/16” (2mm)
