Kold-Draft SC200 Series - Page 24

ITEM PART NUMBER
QTY. DESCRIPTION
1 202115201
l SC ROCKER PLATE ASSEMBLY- LEFT-SS
2 202115202 1
SC ROCKER PLATE ASSEMBLY - RIGHT - SS
3 301176901 1
SC WATER PLATE SUPPORT
4 301184001 1
SC WATER PLATE COVER
5 301184201 1
SC WATER PLATE DEFLECTOR
6 503100319 2
SCREW #8-32 x 3/8 PH PAN MS SS
7 503100340
8
SCREW #6-32x 1/4 PH PAN MSSS
8 503100341 2
SCREW #8-32 x 1/4 PH PAN MS SS
9 503105001 3
SCREW #8-18 x 5/16 TYPE B PHILLIPS TRUSS HEAD
10 503105101 2
SCREW #8-18 x 7/8 TYPE B SLOTTED FLAT HEAD SS
11 503105901 2
FLAT WASHER .997 OD x .25410 x .060 THICK SS
12 503106001 2
SC DOG POINT SET SCREW l /4-20 x 3/8
13 505116301 1
SC WATER PLATE
14 505116401 1
SC OPERATOR - LEFT SIDE
15 505116501 1
SC OPERATOR - RIGHT SIDE
16 505116601 2
SC LINK BUSHING
17 505116701 2
SC WATER PLATE BUSHING
18 505116801 2
SC200/HD200 SHAFT BEARING
19 505116902 2
SC WATER PLATE LINK
20 505117401 1
SC ROCKER PLATE BEARING
21 513107601
l SC OPERATOR SHAFT
22
GBB00223
9
WATER PLATE PLUG
23
GBB00959
1
ROLL PIN l /8 x l HD SPIRAL SS
102148101 EVAP KIT "C" CUBE ONLY
102148201 WATER PLATE KIT
510121901 EVAP/BIN PROBE (BOTH SAME NUMBER)
102148401 WATER LEVEL ASSEM. (FLOAT)
301175801 BACK PANEL
302140001 FRONT PANEL (TOP)
302140301 LEFT SIDE PANEL
302140401 TOP PANEL
302140301 RIGHT SIDE PANEL
102103701 RELAY PLUGIN
102100701 SOCKET
510110601 ROCKER SWITCH
102145903 CONTROL BOARD
510127701 HARVEST ASSIST SWITCH (PUSH BUTTON)
PARTS LIST

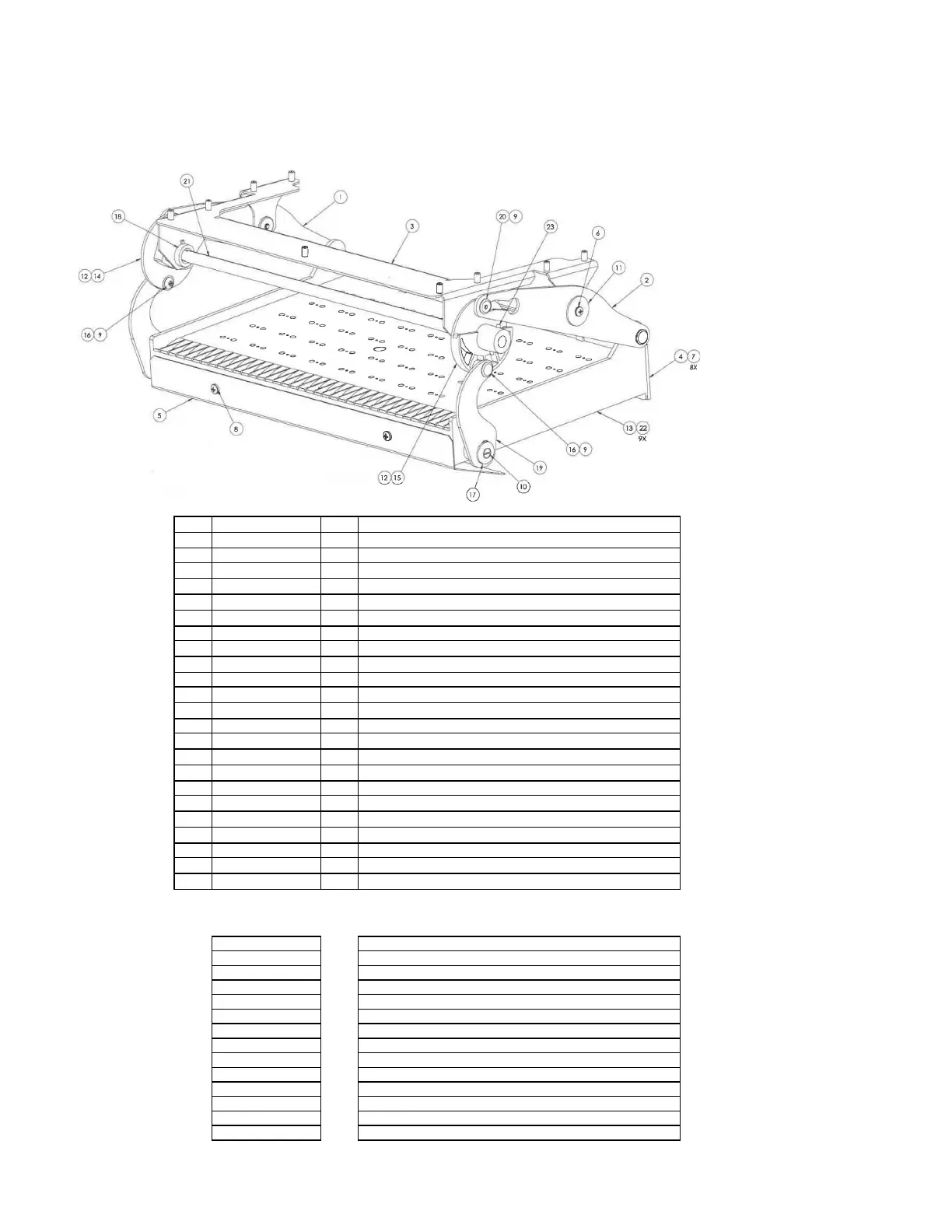

SC200 WATER PLATE & OPERATION ASSEMBLY
DOC# 307108601
SC201AC Parts List
