Installation Instructions
Basic Installation Steps
Prepare Wall Sleeve
Install rear Louver Panel / Grille into Wall Sleeve
Attach Seals inside wall sleeve
Prepare grounding wire
Insert Air Conditioner Unit into Wall Sleeve and attach Ground Wire
Insert Main Seal
Attach Front Frame pieces
Before Getting Started
Your Koldfront though the wall air conditioner is designed to be installed in conjunction with a wall
sleeve. If you are installing your new Koldfront air conditioner into an existing wall sleeve, please
check to confirm that the wall sleeve is in sound structural condition and that is sized
appropriately to accommodate your Koldfront air conditioner. For reference, your new Koldfront
Air Conditioner is 24
1
/
4
“ X 20
3
/
8
“ X 14
1
/
2
”
Note: When choosing your window make sure power supply cord is within 4 feet of a grounded 3-
prong outlet.

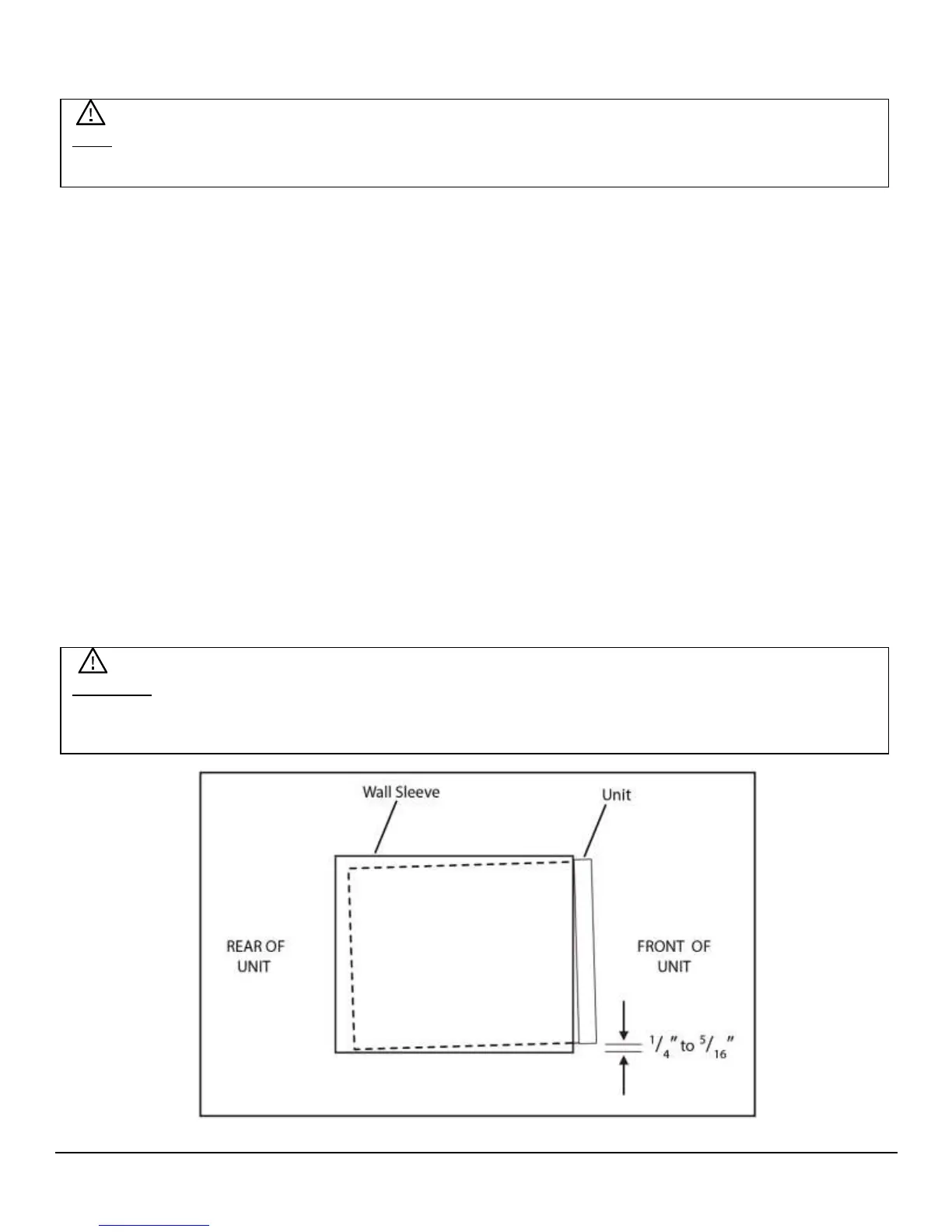

Important: When installation is complete, the unit MUST have a rearward slope as shown in the
image below to ensure proper drainage. This is accomplished by using the Tapered Support
Blocks as noted in the “Attach Seals” section of this document.
