1.6 Optical Level
Using height and distance measurement as example

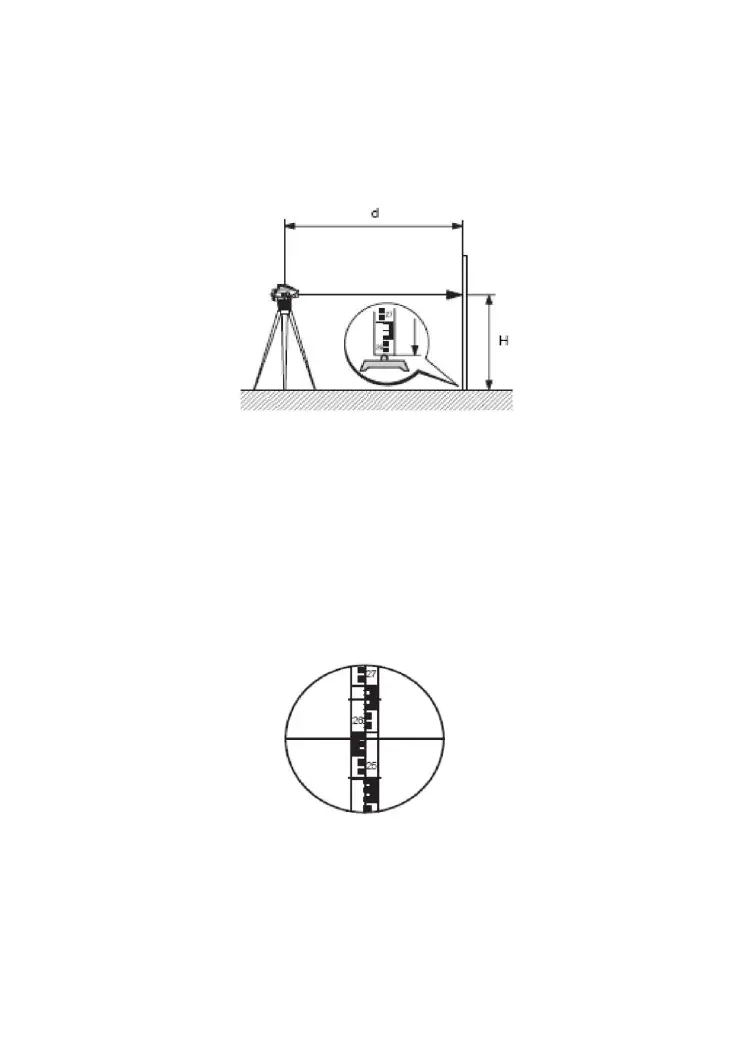

1.6.1 Height Measurement
1) Set KL-03 on a tripod, leveling the equipment, focusing lens.
2) Hold the code staff vertically.
3) Aim at the target roughly at first
4) Focus to the target by adjusting focusing screw
5) Aim at the target precisely by adjusting horizontal tangent
6) Check the bubble
7) Record the center height H of cross-hair on the staff
Eg. H=2.586m
When using the digital level, press trigger key after repeat the step 1-6, KL-03 will
record the code and distance automatically.
