40 Troubleshooting SEN00460-01
114E-3 Series
43
E-50 Code [2186/CA2186] Throttle Sens. Sup. Volt. Low Error 1

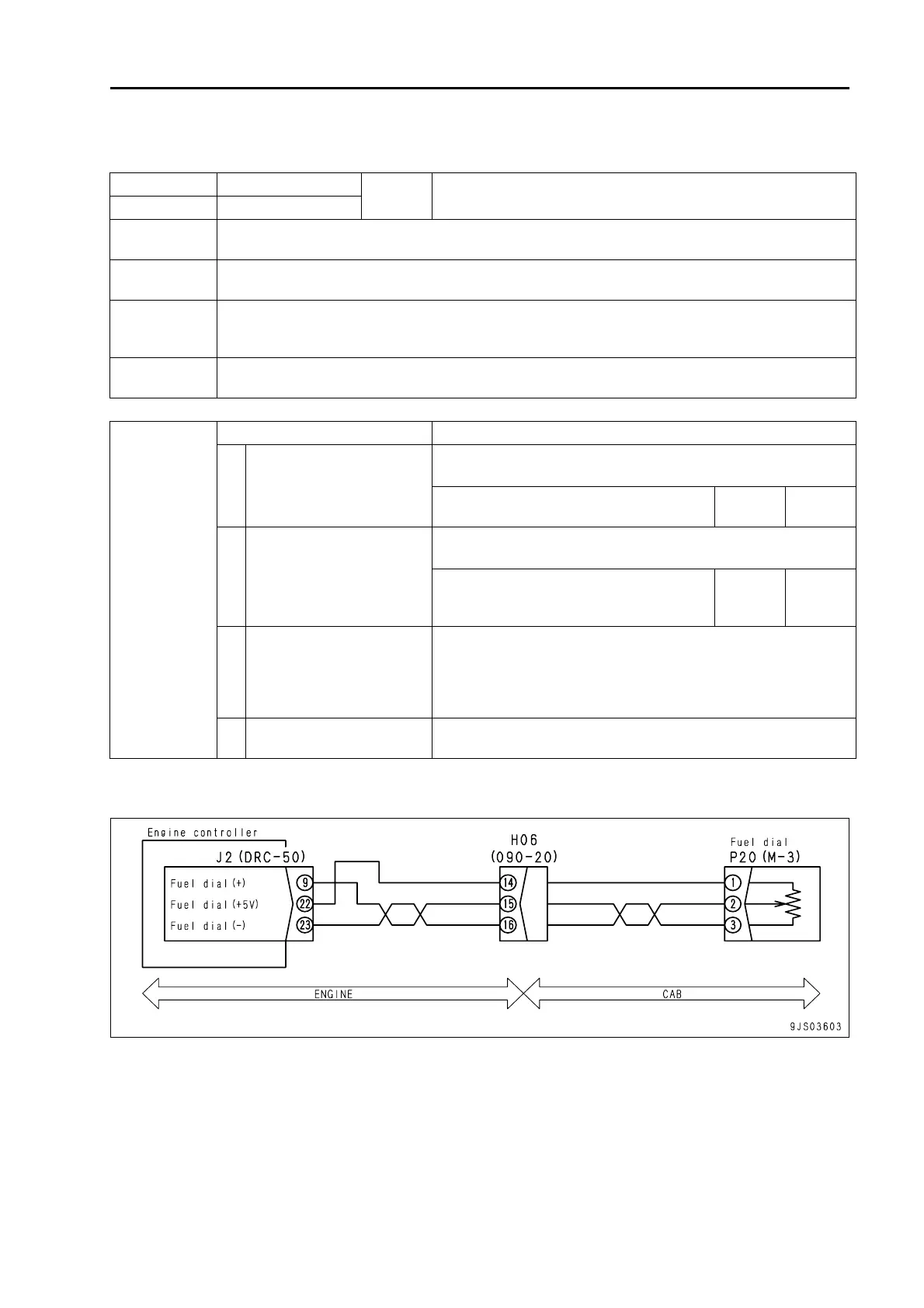

Circuit diagram related to fuel control dial
Error code Failure code
Trouble Abnormally low level in throttle sensor power supply
2186 CA2186
Contents of
trouble
• Low voltage occurred in throttle sensor power supply circuit.
Action of con-
troller
• Depends on machine model.
Problem that
appears on
machine
• Depends on machine model.
Related infor-
mation
• Method of reproducing failure code: Starting switch ON.
Possible causes
and standard
value in normal
state
Causes Standard value in normal state/Remarks on troubleshooting
1
Ground fault in wiring har-
ness (Short circuit with GND
circuit)
a Troubleshoot with starting switch OFF, then carry out trouble-
shooting without turning starting switch ON.
Wiring harness between J2 (female) (22) –
P20 (female) (1)
Resis-
tance
Min.
100 kz
2
Short circuit in wiring har-
ness (With another wiring
harness)
a Troubleshoot with starting switch OFF, then carry out trouble-
shooting without turning starting switch ON.
Wiring harness among all pins between J2
(female) (9) – J2 (female) (With P20 discon-
nected)
Resis-
tance
Min.
100 kz
3
Defective wiring harness
connector
Connecting parts among fuel control dial, engine unit wiring har-
ness, and engine controller are suspected. Inspect them directly.
• Loose connector, broken lock, broken seal
• Corrosive, bent, broken, forced-in, or extended pin
• Humidity in connector, entry of dirt or dust, poor insulation
4 Defective engine controller
If causes 1 – 3 are not detected, engine controller may be defective.
(Since trouble is in system, troubleshooting cannot be carried out.)
To Next Page
