Connect MX electrical brake opening tool: MX10 and MX20
Procedure Note

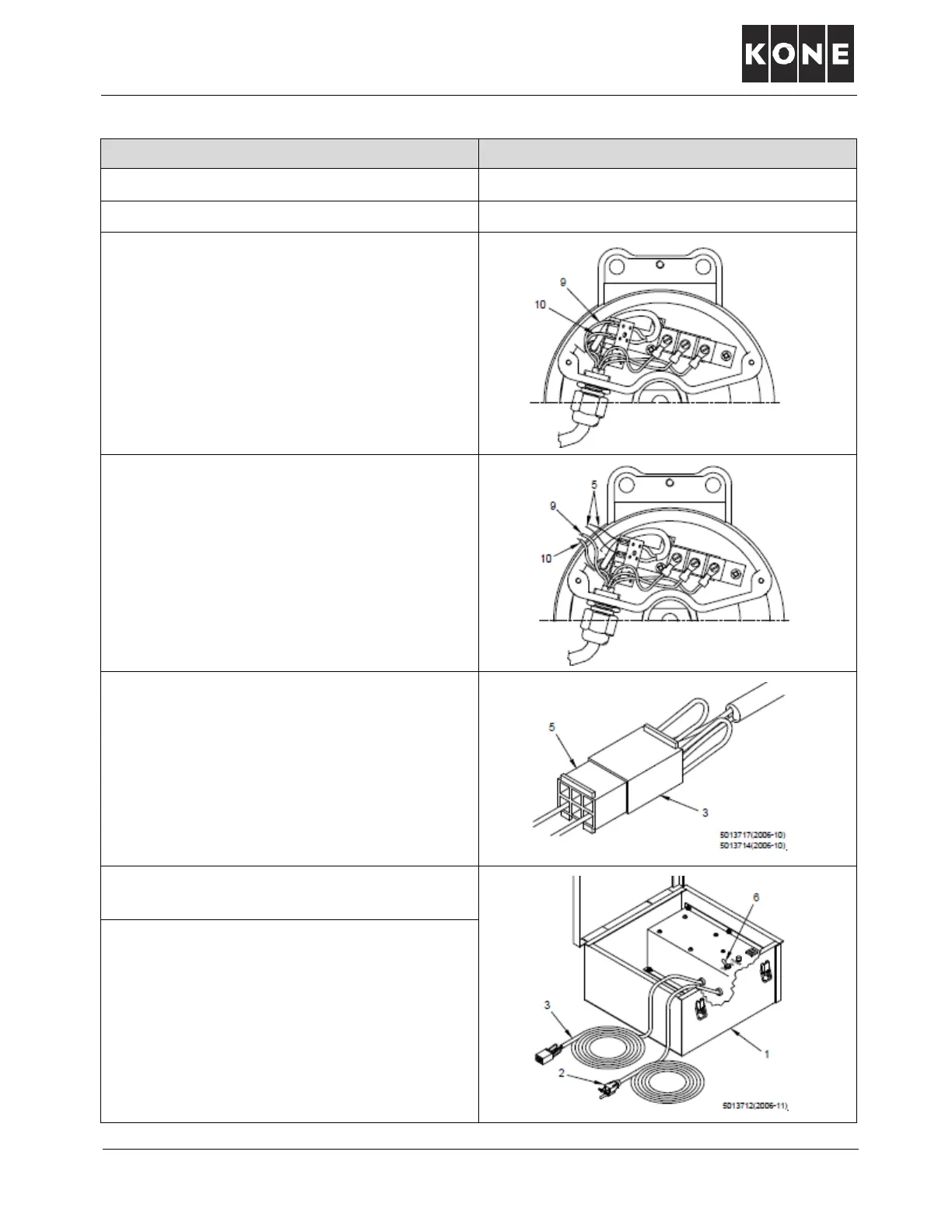

1. Enter car roof.
2. Remove cover from one brake.
3. Disconnect from terminal strip two wires (9)
(10) coming from controller.
4. Connect pin ends of connector cable (5) to
terminal strip where two wires (9) (10) were
removed.
5. Plug other end of pin connector cable (5) into
connection cable (3) from brake opening tool
(1).
6. Check that toggle switch (6) is in OFF
position.
7. Connect power supply cable (2) to 110 volt
outlet on car top.
