8.6.4.19.5: NORMAL AND FINAL TERMINAL STOPPING DEVICES
Test NTS (Normal Terminal Stop): Bottom
1) Drive elevator to the top terminal floor.
2) Put elevator on inspection.

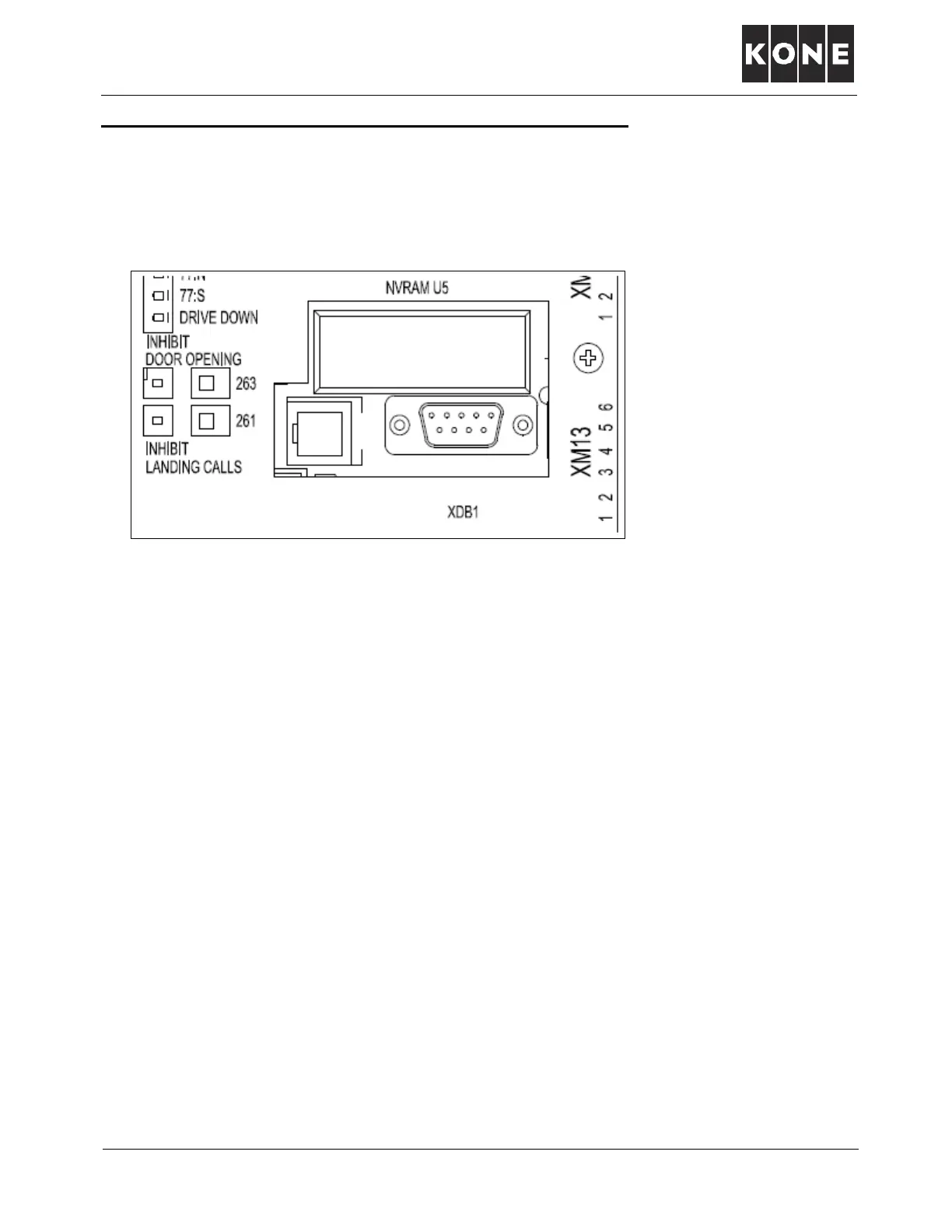

3) Disable landing calls and doors by sliding LCECPU switches 263 and 261 to left.
Note: Ensure no passengers are in car.
4) Activate NTS Test Down.
• Set UI menu 6-72-7
Note: Overrides normal stopping means.
5) Take elevator off inspection.
6) Back out of menu 6 until car position displays on user interface.
7) Give car call to the bottom terminal floor.
8) No further intervention is required. Car runs to the bottom floor and performs an NTS stop at the
bottom floor.
9) Elevator must stop within the door zone at the bottom floor.
• Fault codes 150, and/or 151 and/or 152 appear on user interface.
Note:
Fault 26 may appear a few seconds after stop, and will clear a few seconds later.
