4.2 CATEGORY 5 TRACTION ELEVATOR TEST PROCEDURE
RULE 8.6.4.20.1: CAR AND COUNTERWEIGHT SAFETIES
Functional Check of Car Safeties
• Perform this check only after performing governor trip speed test.
• This check should be performed to verify safeties are working before any overspeed car or
counterweight safety test.
• This check is not normally required as part of a safety inspection.
1) Load elevator cab with 100% capacity load.
2) Put car on machine room inspection by putting switch 270 DOWN.

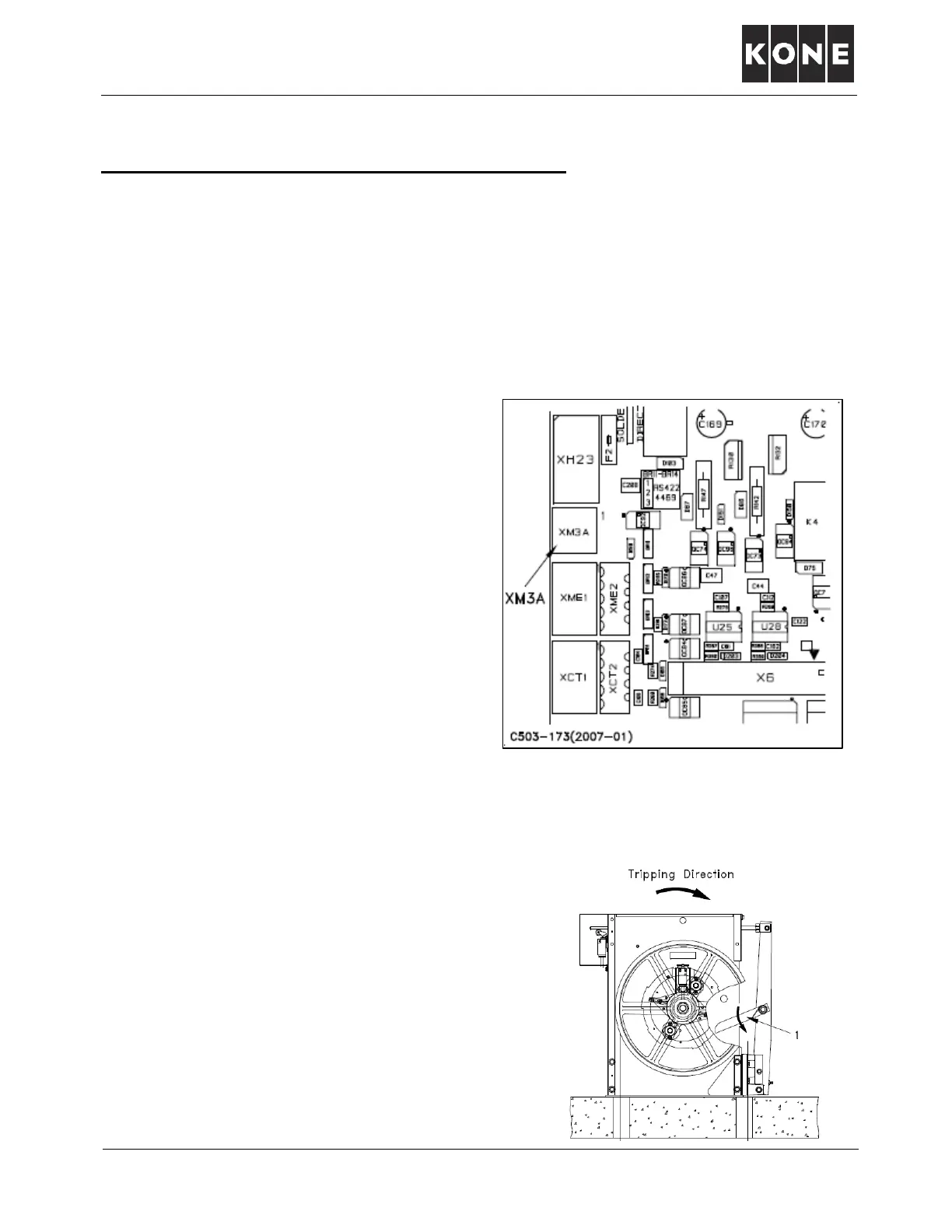

3) Temporarily jumper the governor overspeed
switch by jumpering LCEADON2 XM3A/1-3.
4) Run car down on inspection and manually trip governor as follows.
b) EcoSystem MR
OL100 governor
• OL100 governor:
While car is running down, hit downward
on governor tripping lever (1), setting jaw.
