Test ETS (Emergency Terminal Stop): Top
• This test is not required for car speeds 200 FPM (1.0 m/s) or less.
• This test is not required if elevator is equipped with ETSL switches.
1) Drive elevator to bottom terminal floor.
2) Put elevator on inspection.

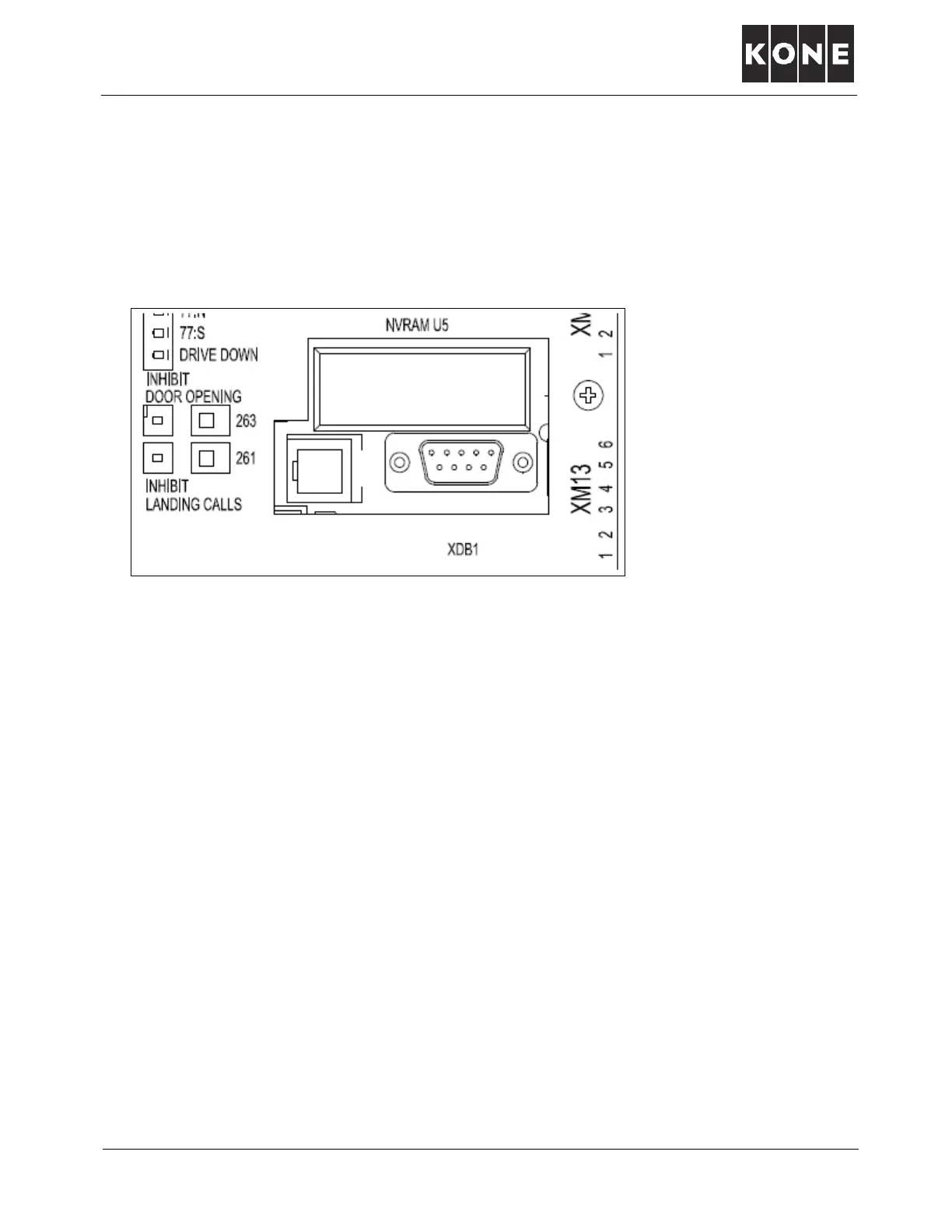

3) Disable hall calls and car calls by sliding LCECPU switches 263 and 261 to left.
Note: Ensure no passengers are in the car.
4) Set UI menu 6-72-3, Counterweight Buffer Test.
Note: Overrides normal stopping means.
5) Take elevator off inspection.
6) Back out of menu 6 until car position displays on user interface.
7) Give car call to top terminal floor.
8) After 77:N turns off, press and hold Buffer Test button.
Note: Overrides NTS
9) Elevator runs full speed to ETS switch and makes a brake stop. Car slides to a stop, and may
contact final limit. Counterweight frame might contact counterweight buffer.
10) If car slides to final limit switch, and counterweight to buffer:
• Put car on inspection.
• Temporarily jumper the final limit (LCEADON2 XH1/1-5).
• Run car down below final limit.
• Remove temporary jumper from (LCEADON2 XH1/1-5).
• Run and test elevator.
