KONE Maintenance Method
MX10 / MX20 MCP Procedures - ASME A17.1-2013 / CSA B44-13
© 2014 KONE Corporation PSK8-604-MX10/MX20
All rights reserved.
71 (-) 2014-12-15
Test NTS (Normal Terminal Stop): Top
1) Drive elevator to the bottom terminal floor.
2) Put elevator on inspection.

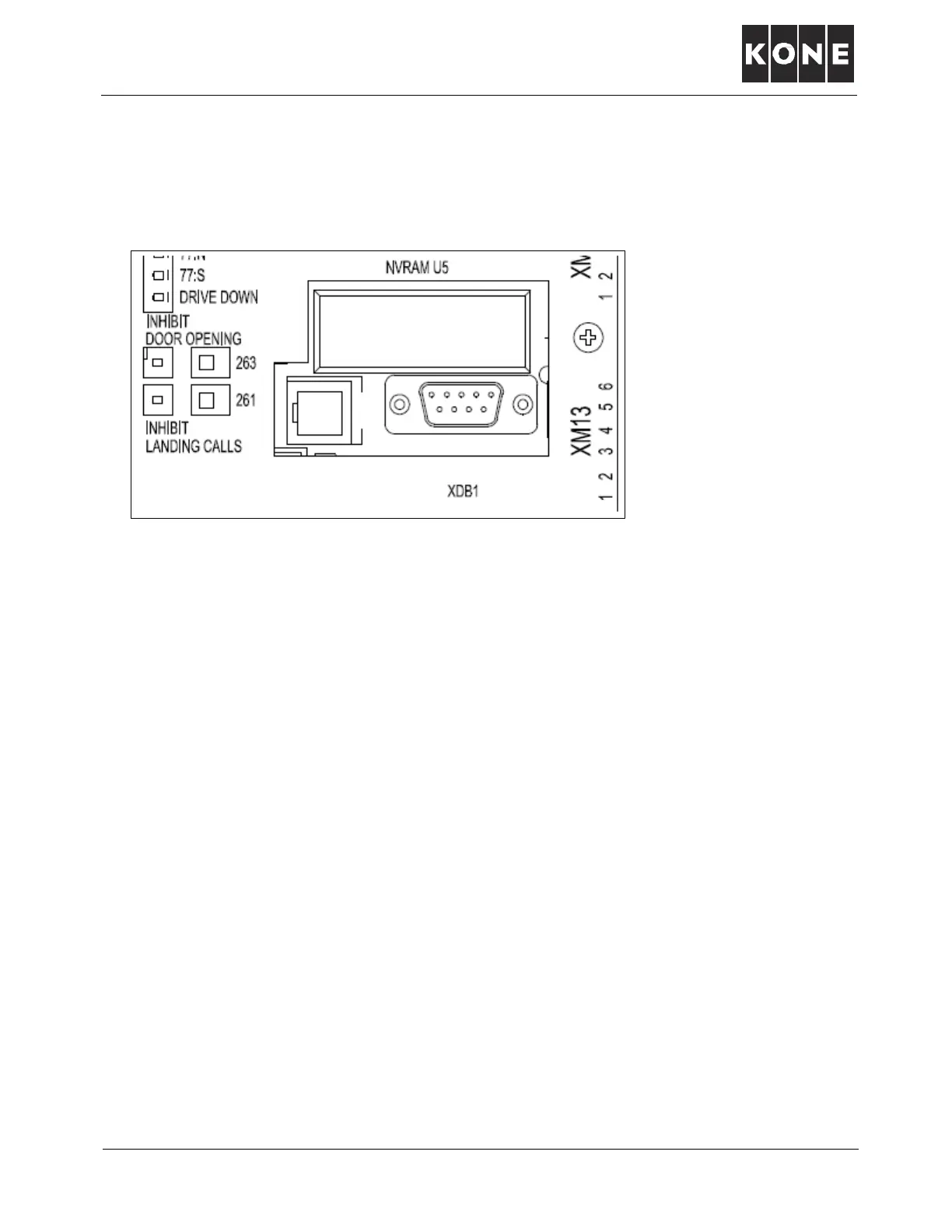

3) Disable landing calls and doors by sliding LCECPU switches 263 and 261 to left.
Note: Ensure no passengers are in car.
4) Activate NTS Test Up.
• Set UI menu 6-72-6
Note:
Overrides normal stopping means.
5) Take elevator off inspection.
6) Back out of menu 6 until car position displays on user interface.
7) Give car call to top terminal floor.
8) No further intervention required. Car runs to top floor and performs an NTS stop at the top floor.
9) Elevator must stop within door zone at top floor.
• Fault codes 150, and/or 151 and/or 152 appear on user interface.
Note:
Fault 26 may appear a few seconds after stop, and will clear a few seconds later.
